Head tube angle determines the angle of your forks. A steeper HT (i.e 75°and higher) will make the bike turn quicker than a mellower angle (i.e 74.5 and lower°). The more responsive the frame, the more twitchy it will feel, especially at highspeed!
-

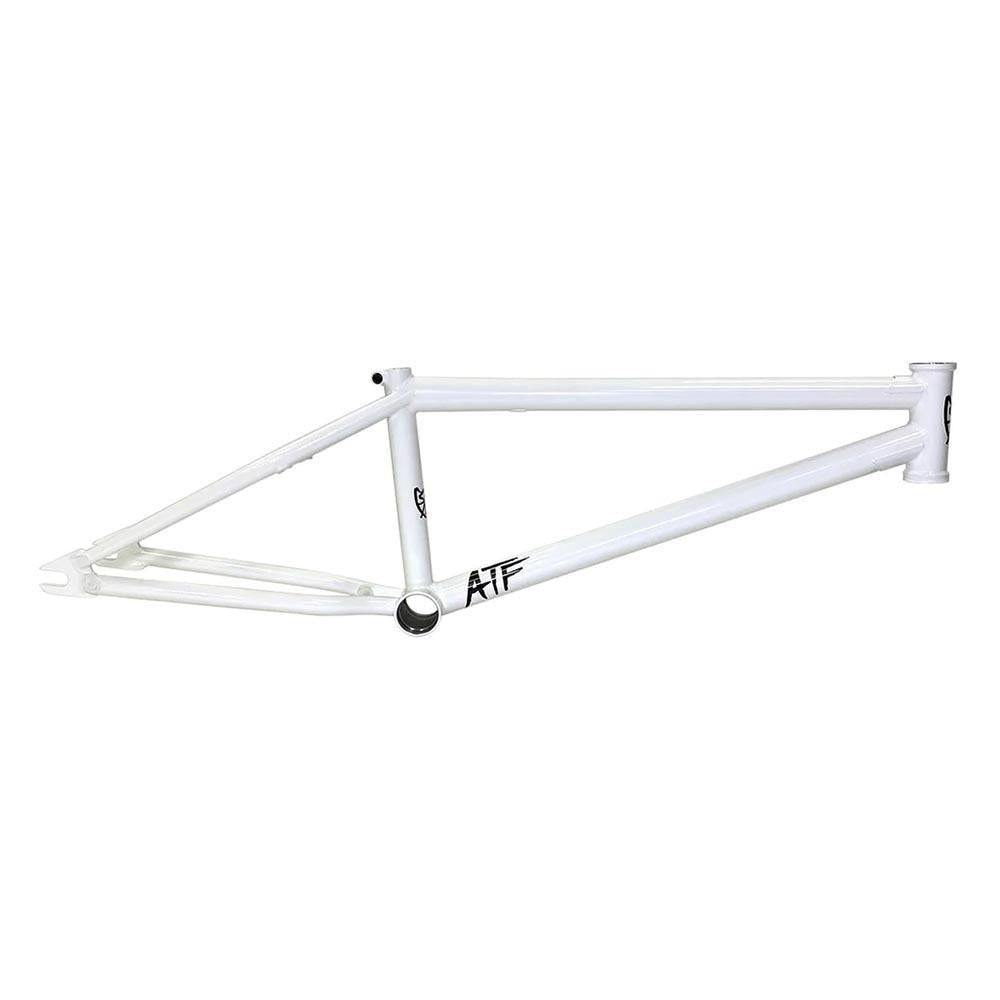

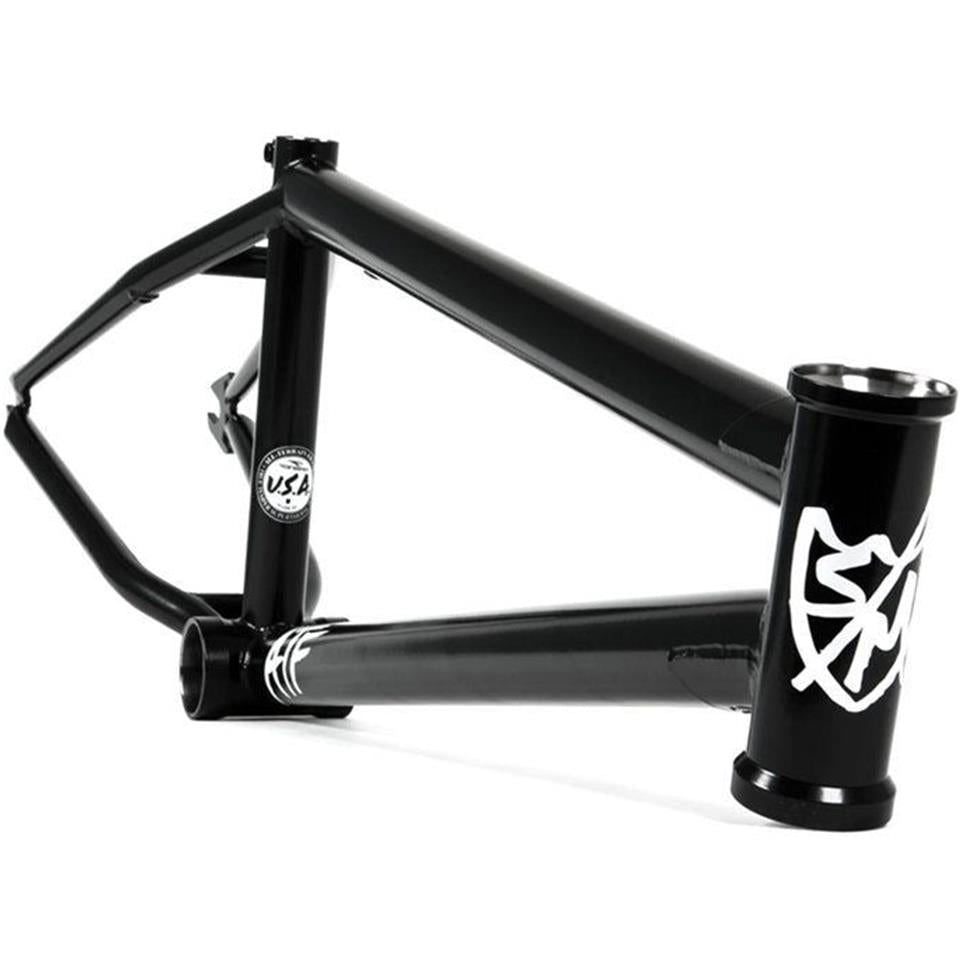

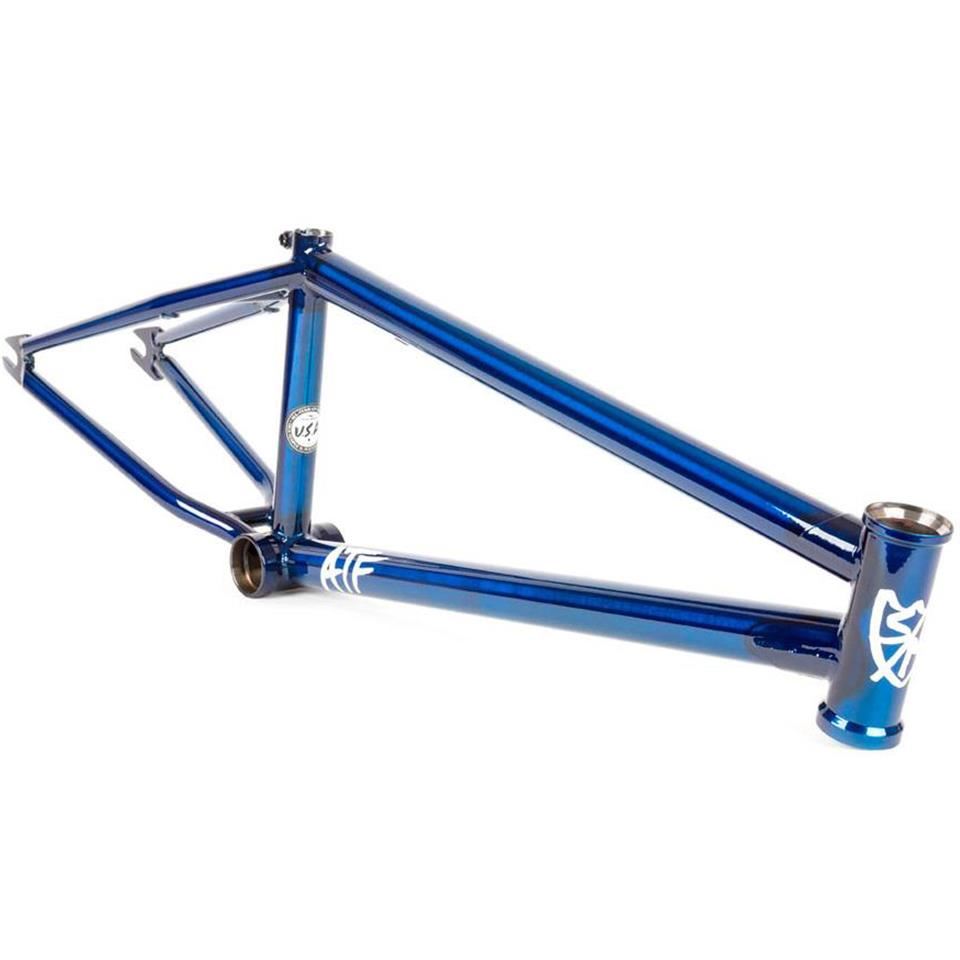

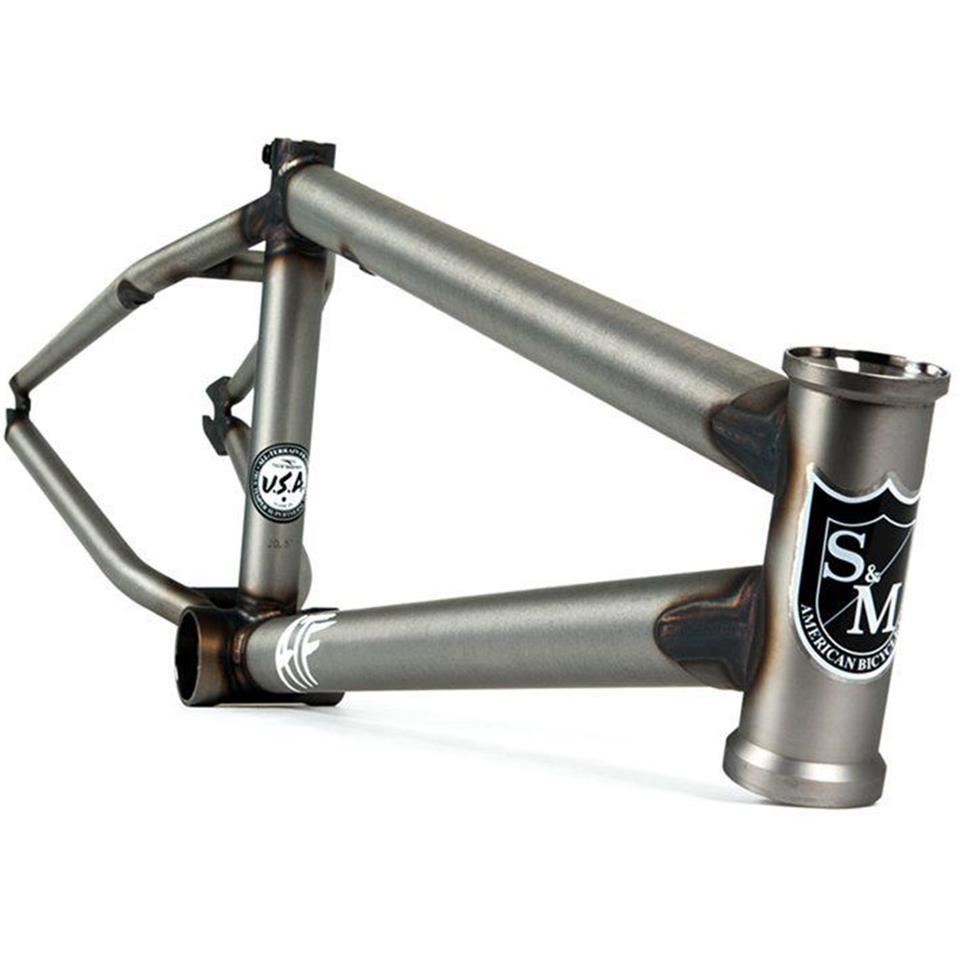

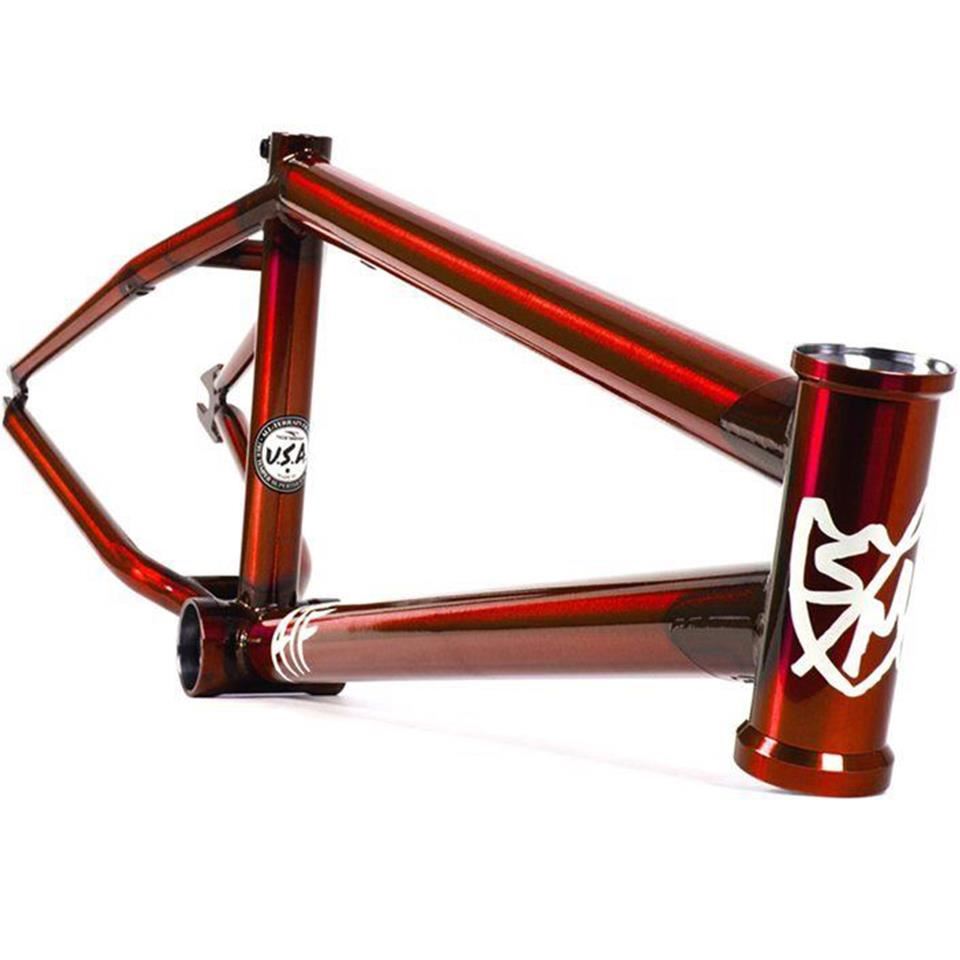

The ATF bmx frame from S&M is the base model of all of S&M's lastest signature frames. The ATF (Alcohol, tobacco and firearms) uses S&M's standard heat treated supertherm tube set with a tapered and butted top tube for extra strength, dent resistant down tube, tapered rear stays with massive rear tyre clearance and heat treated micro dropouts.
S&M says the frame is a bit burlier and stronger than most of their frames but still only weights in a 4.7lbs. -
Seen this cheaper elsewhere? We price match any legitimate competitor!
-
- Free Delivery Over €99 in Germany
- Free Delivery Over €179.95 (EU*)
- Standard Delivery From €5.95
- Express Delivery Available
- 90 Day hassle free returns
- *Excludes Some Regions
Product Specs
- MATERIAL: Full 4130 Chromoly
- HEAD TUBE ANGLE: 75°
- SEAT TUBE ANGLE: 71°
- CHAIN STAY LENGTH: 13.4"
- BB HEIGHT: 11.7"
- WHEEL SIZE: 20"
- STANDOVER HEIGHT: 8.5"
- DROPOUT SIZE: 14mm
- HEADSET TYPE: Integrated
- BB TYPE: Mid
- BRAKE MOUNTS: Removable
- GYRO TABS: None
- WEIGHT: 4.7lbs
Product Highlights
- Nuetral Geometry for responsiveness and stabilty
- Great all round frame for all types of riding
- Top Tube gussets with butted tubing for added strength
- Dent resistant downtube
- Made in the USA
90 Day Returns
Duty Free Shipping from Germany
100% Secure Shopping
Trustpilot rate US excellent
NEED SOME HELP UNDERSTANDING FRAME GEOMETRY?
bmx frame geometry can look daunting but thanks to our handy guide below you will have it figured out in no time, and remember we're all bmxers here, so if you have any questions just ask.
Frame Size Chart
Frame Sizing is very much a personal preference, some riders like them longer, others shorter - here's a rough guide - if you have any questions remember we are here to help!
3ft - 4ft - best suited to a 16" or 18" wheeled bike
4ft - 5ft - 18" to 20" top tube
5ft - 5ft 4" - 20" to 20.25" top tube
5ft 4" - 5ft 8" - 20.25" to 21" top tube
5ft 8" - 6ft - 21" to 21.25" top tube
6ft Plus - 21" top tube or longer
Frame Geometry
Frame Geometry can take a bit of understanding - but here at SourceBMX we are here to help! The first thing to understand is that BMX frame Sizing is best measured by the length of the Top Tube - shown here as TT. Keep reading on to understand how the angles change how your frame will feel and check out our sizing chart below!
Headtube Angle (HT)
Chain Stay Length (CS)
The chain stay is essentially the length of the rear end of the bike. A shorter CS length will make the bike more responsive and a longer one more stable. As a rough guide a 13.5" long chain stay is about average.
Seat Tube Angle (ST)
Seat tube angles don’t vary too much (around 71°) and affect the centre of gravity. The steeper the angle the shorter your bike will feel. Some frames have a mellower seat tube angle (example 69˚) which makes for a longer frame without actually being longer and reduces how fast your frame turns.
Stand Over Height (SO)
Standover height is essentially how high your frame is. A frame with a low standover height is more responsive and easier to ‘throw around’ whilst a high SO height is more stable; particularly useful when going fast.
