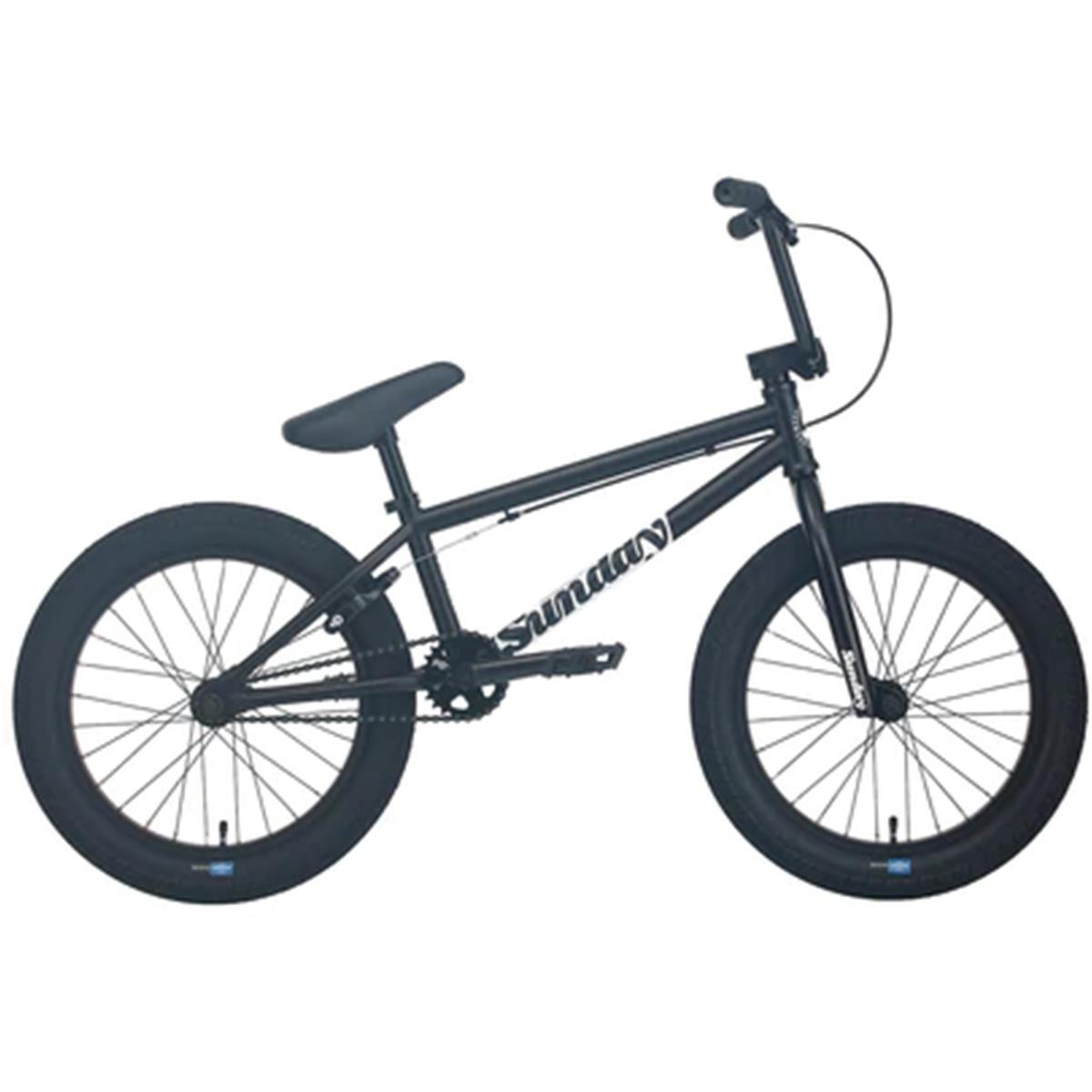

Product Specs
- FRAME MATERIAL:
- WHEEL SIZE: 18"
- TOP TUBE LENGTH: 18.5"
- CHAIN STAY LENGTH: 11.7" - 12"
- HEADTUBE ANGLE: 74.5°
- SEAT TUBE ANGLE: 71°
- FORKS: Sunday Primer, 18" fork w/2-piece steerer tube and welded pre-load
- BARS: Sunday, 2-piece
- STEM: Sunday Freeze front load, 48mm
- HEADSET: FSA integrated, 1-1/8"
- BRAKE MOUNTS:
- BRAKES: Odyssey Springfield U-brake
- FRONT HUB: Sunday, 28H, low-flange, loose-ball, 3/8" axle
- FRONT RIM: P-7X aluminium, 18", 28H
- REAR HUB: Sunday, 28H, sealed, 14mm axle w/9T driver
- REAR RIM: P-7X aluminium, 18", 28H
- TYRES: Sunday Current, 18" x 2.2" (Front & Rear)
- SPROCKET: Sunday Sabretooth V2, 25T, steel
- CRANKS: 140mm, 3-piece, chromoly
- BB: Sealed, Mid, 19mm
- PEDALS: Wellgo platform, plastic
- SEAT: Sunday Badge, seat and post combo
- GEARING: 25/9
- WEIGHT: 23.3lbs
Product Highlights
- Designed for the younger riders, the perfect first bike or upgrade for those growing rippers
- Traditional BMX Geometry
- Geometry designed with the smaller rider in mind
- Upgradable with aftermarket parts
NEED SOME HELP CHOOSING A BMX BIKE?
We have compiled a complete BMX buyers guide to help you through the process! Keep reading to find out more about your perfect BMX bike. Here at SourceBMX we are all riders, so we can offer advice that only 100% rider-owned BMX shops can - just ask.
Click here to view all BMX Bikes
BMX BIKE SIZE GUIDE
BMX bikes are measured in two ways: the size of the wheel (20” is the standard BMX wheel size), and the length of the frame which is gauged by the top tube measurement. We have also simplified for you into XS, Small, Medium, etc.Here is a guide to what size you should be looking for - note that there is some overlap in sizes, as personal preference also comes into the equation!
Rider Height (in) | Rider Height (cm ) | Wheel Size (in) | Top Tube Length (in) |
---|---|---|---|
2FT - 3FT | 60 - 90cm | 12" | 11.5" - 13" |
2'8" - 3'4" | 80 - 100 cm | 14" | 2.8" - 15" |
3FT - 3'8" | 90 - 110cm | 16" | 14.5" - 17" |
3'6" - 4'6" | 105 - 135cm | 18" | 17" - 18.5" |
4'6" - 5'1" (XS) |
135 - 155cm | 20" | 18" - 20" |
4'10" - 5'4" | 147 - 162cm | 20" | 20" - 20.25" (XS - S) |
5'2"- 5'8" | 157 - 173cm | 20" | 20" - 20.5" (S - M) |
5'6" - 6FT | 165 - 185cm | 20" | 20.25" - 21" (M - L) |
6FT + | 180cm + | 20" | 20.75" + (L - XL) |
