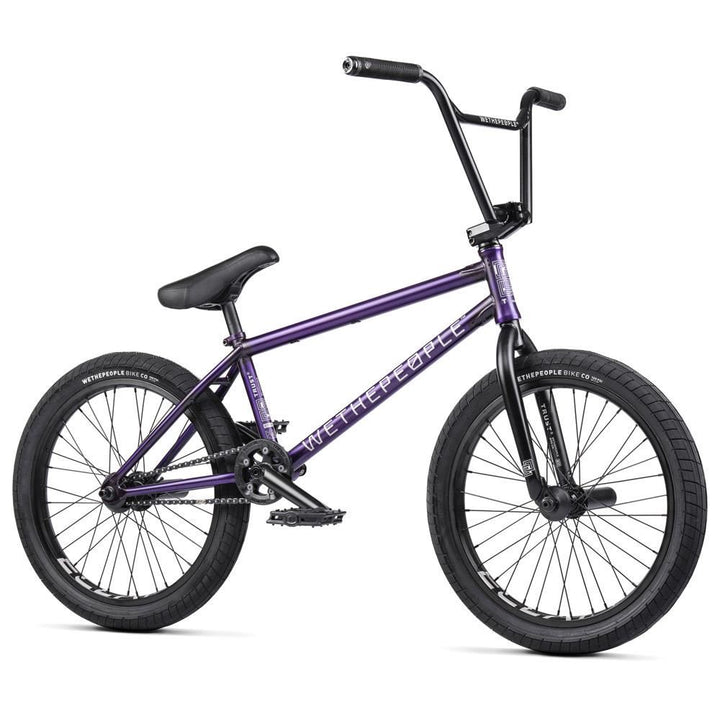

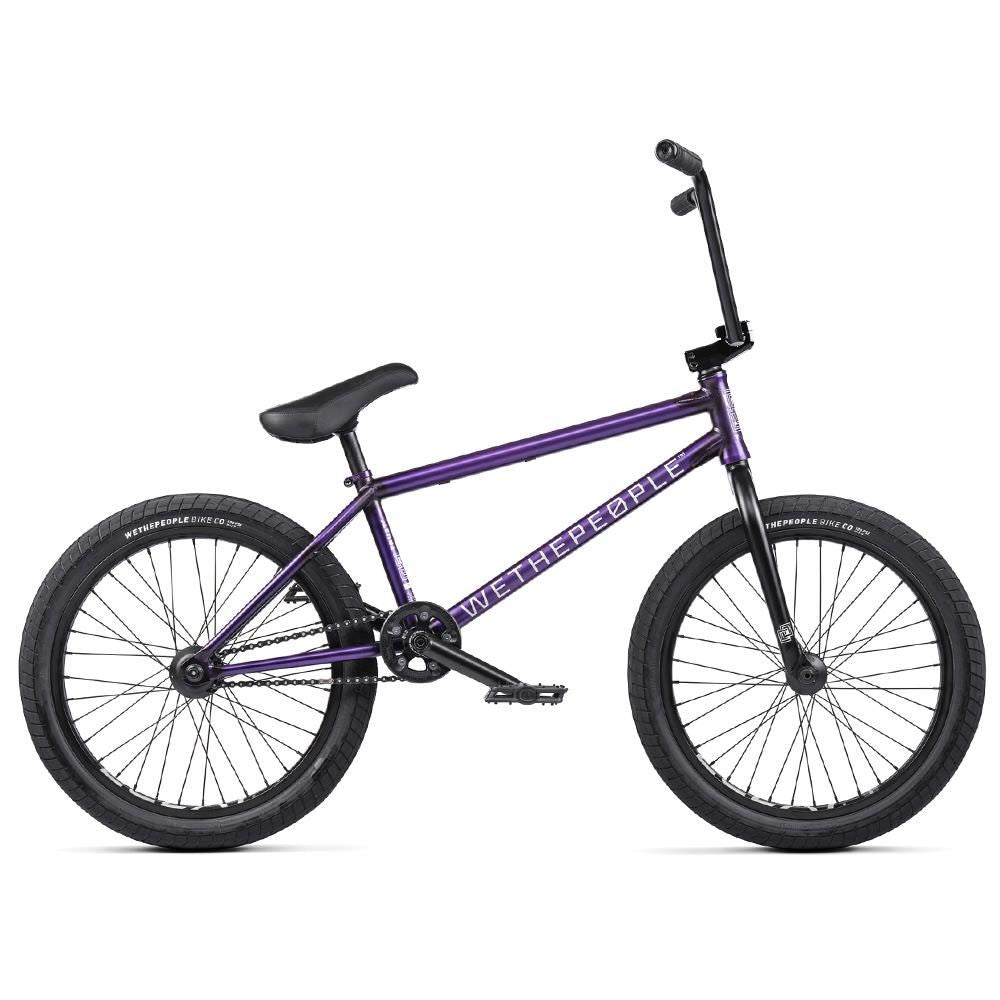

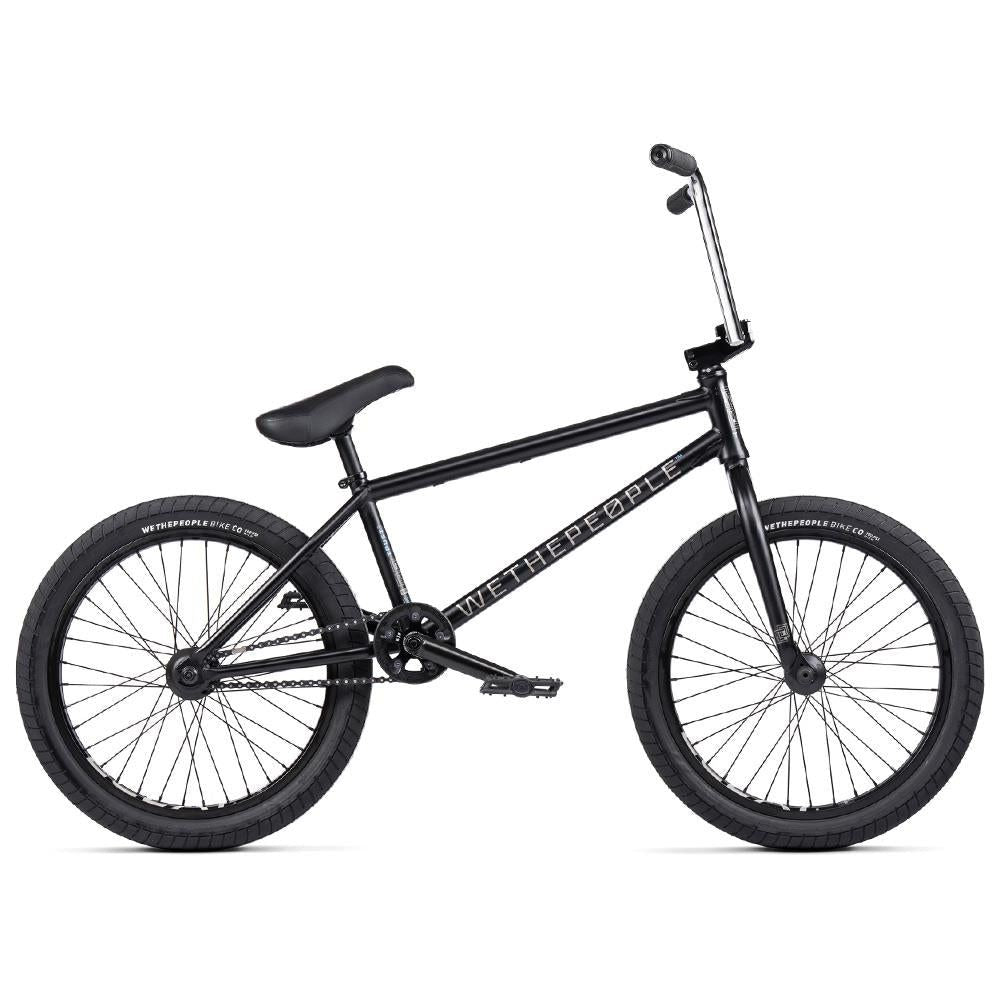

Product Specs

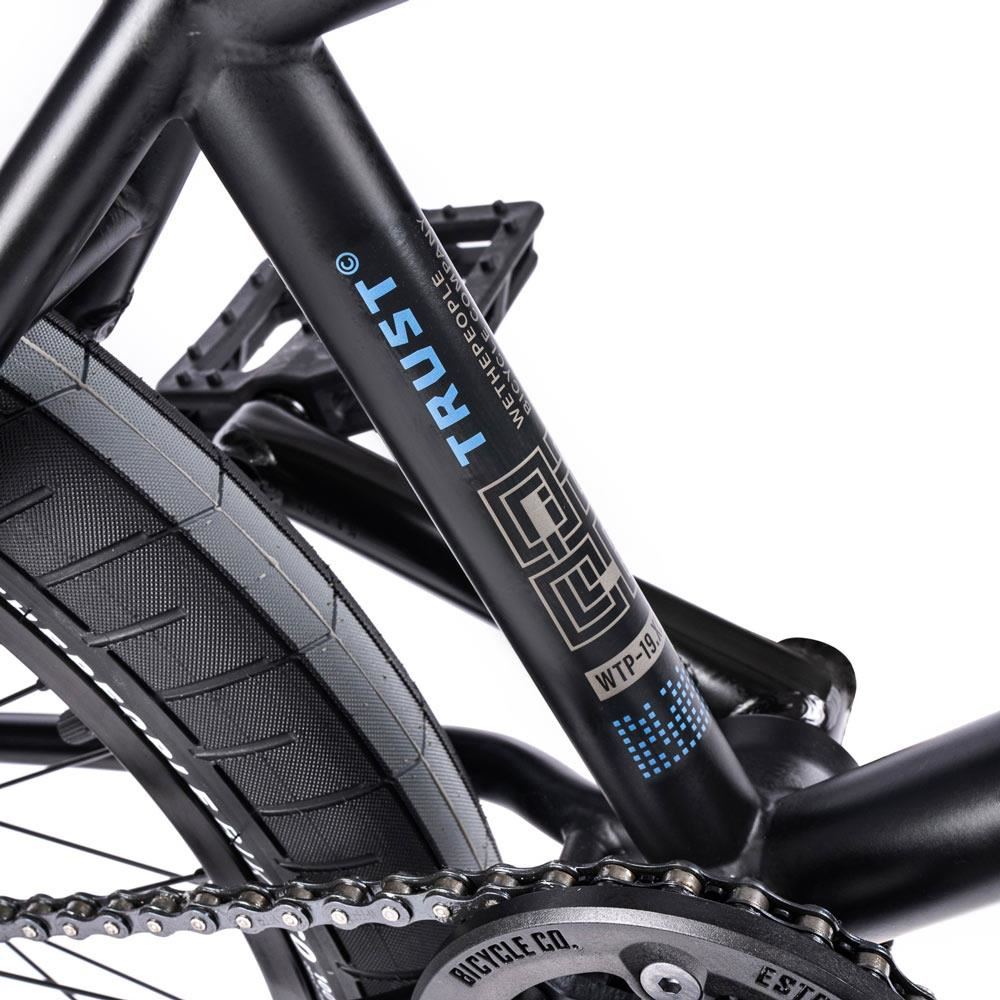

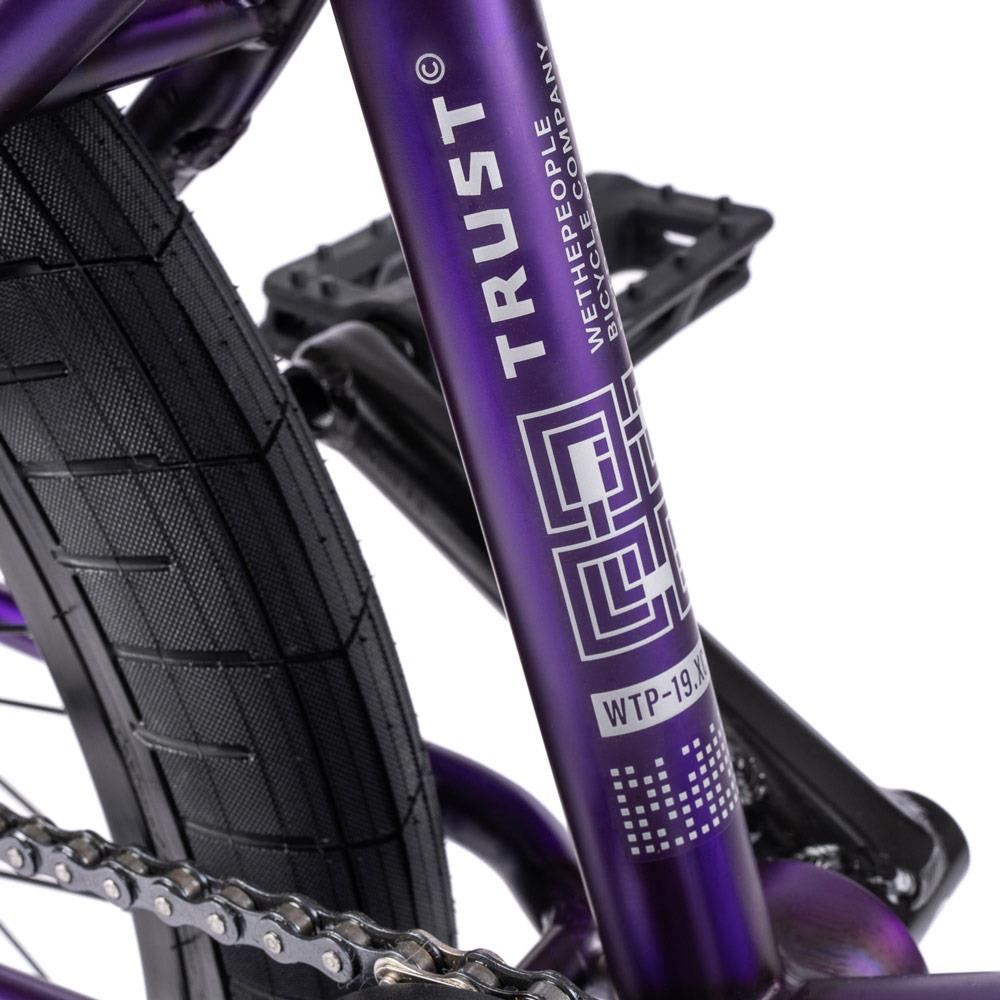

- FRAME MATERIAL: 100% Chromoly
- WHEEL SIZE: 20"
- TOP TUBE LENGTH: 20.75"
- CHAIN STAY LENGTH: 12.75"
- HEADTUBE ANGLE: 75.5°
- SEAT TUBE ANGLE: 71°
- FORKS: 100% Chromoly
- BARS:
- MATERIAL: Chromoly
- TYPE: 4-Piece
- RISE: 9.4" Rise

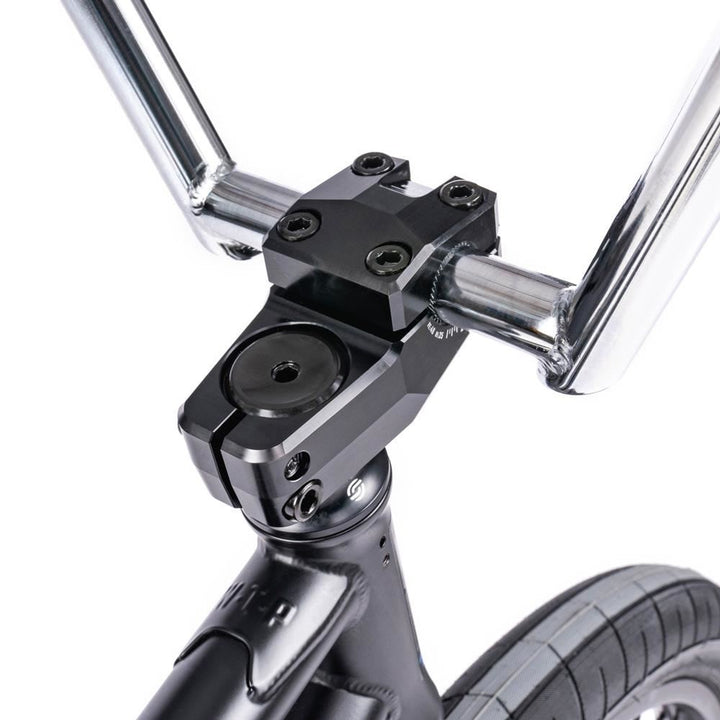

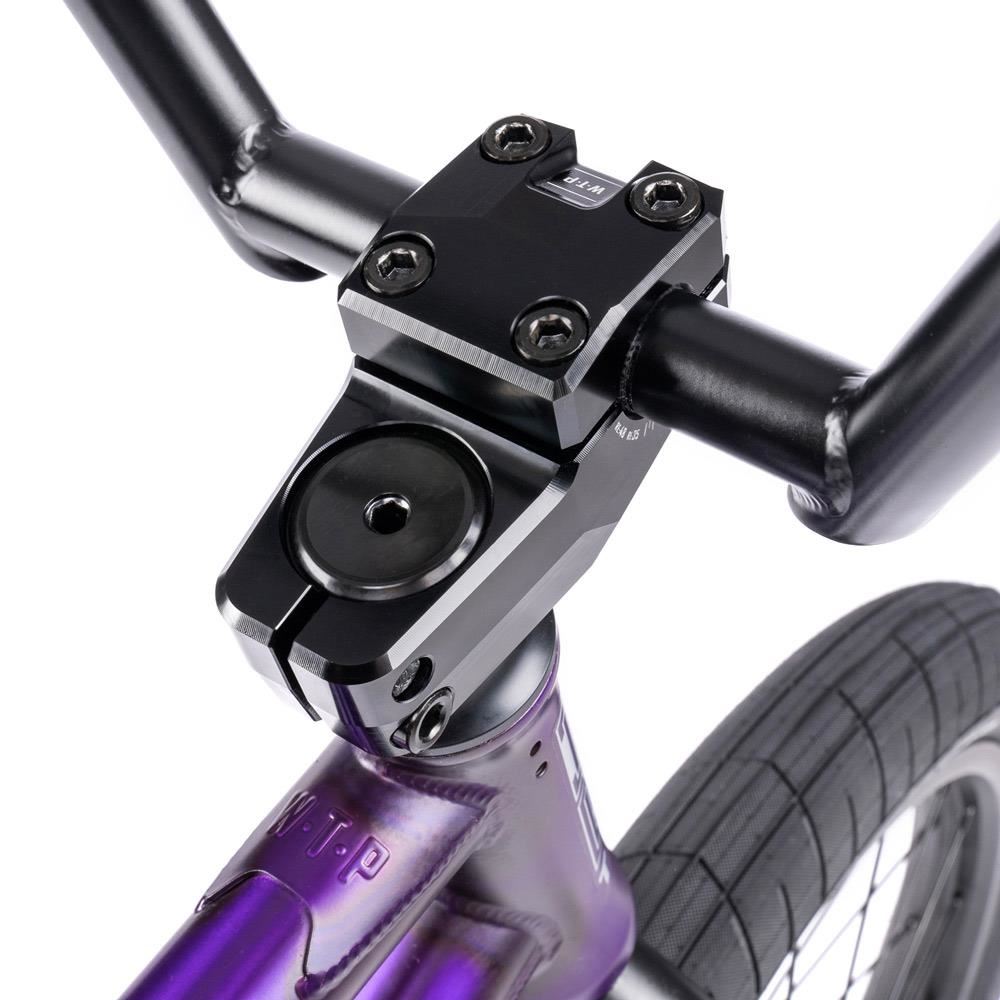

- WIDTH: 29.6" Width - STEM: Alloy Top Load
- HEADSET: Integrated
- BRAKE MOUNTS: Removable
- BRAKES: U-Brake

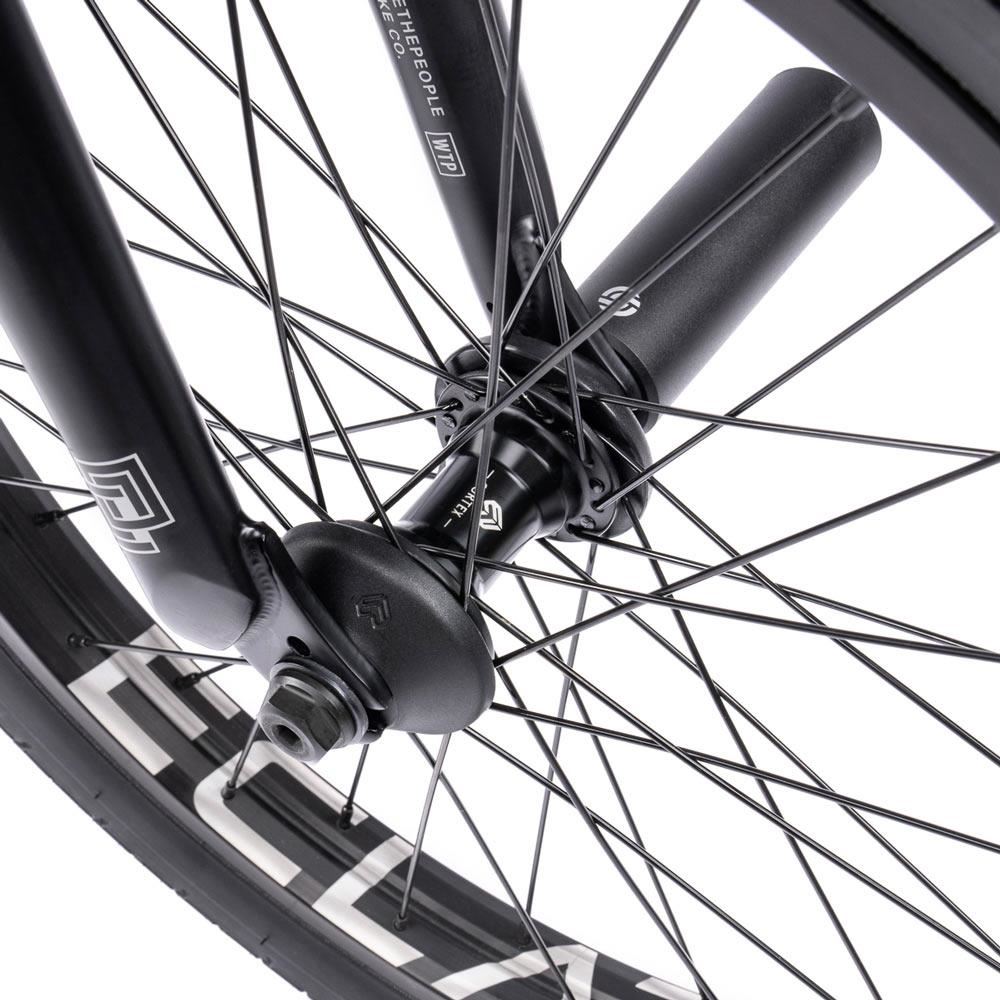

- FRONT HUB: 10mm Sealed
- FRONT RIM: Double Wall

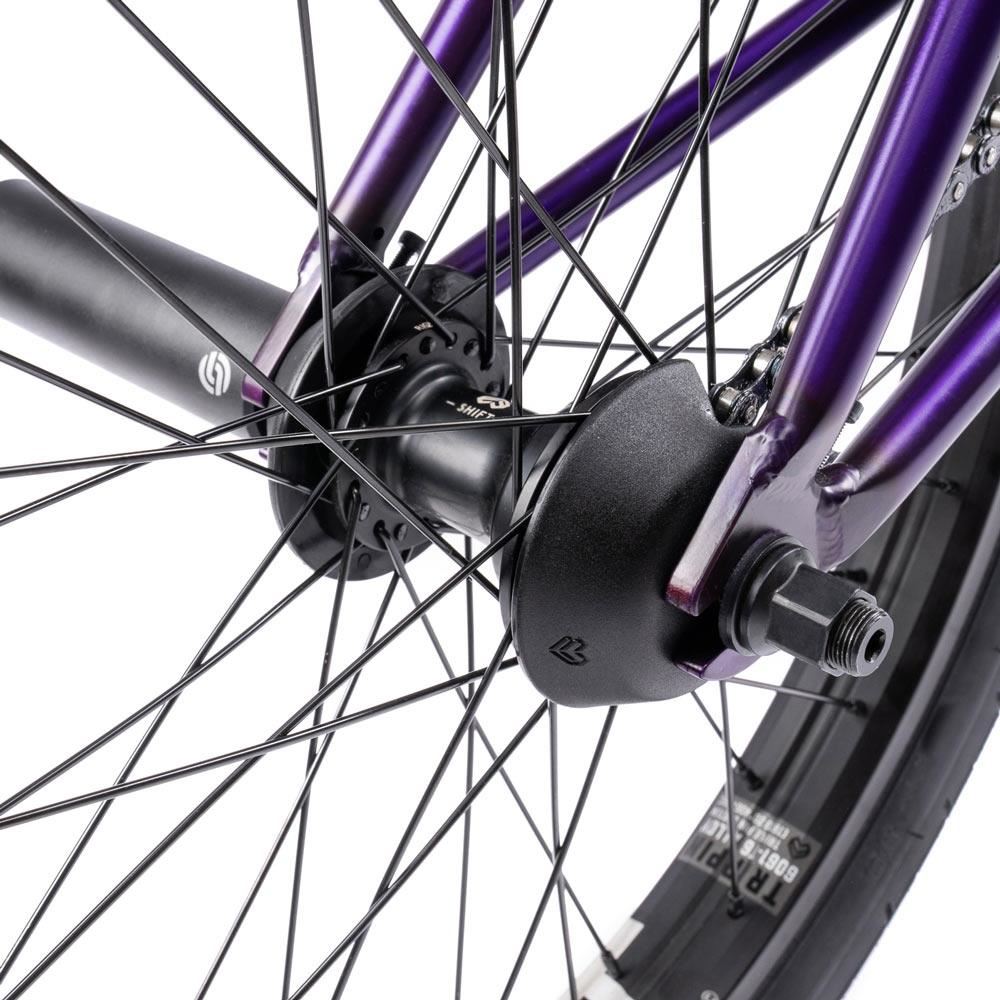

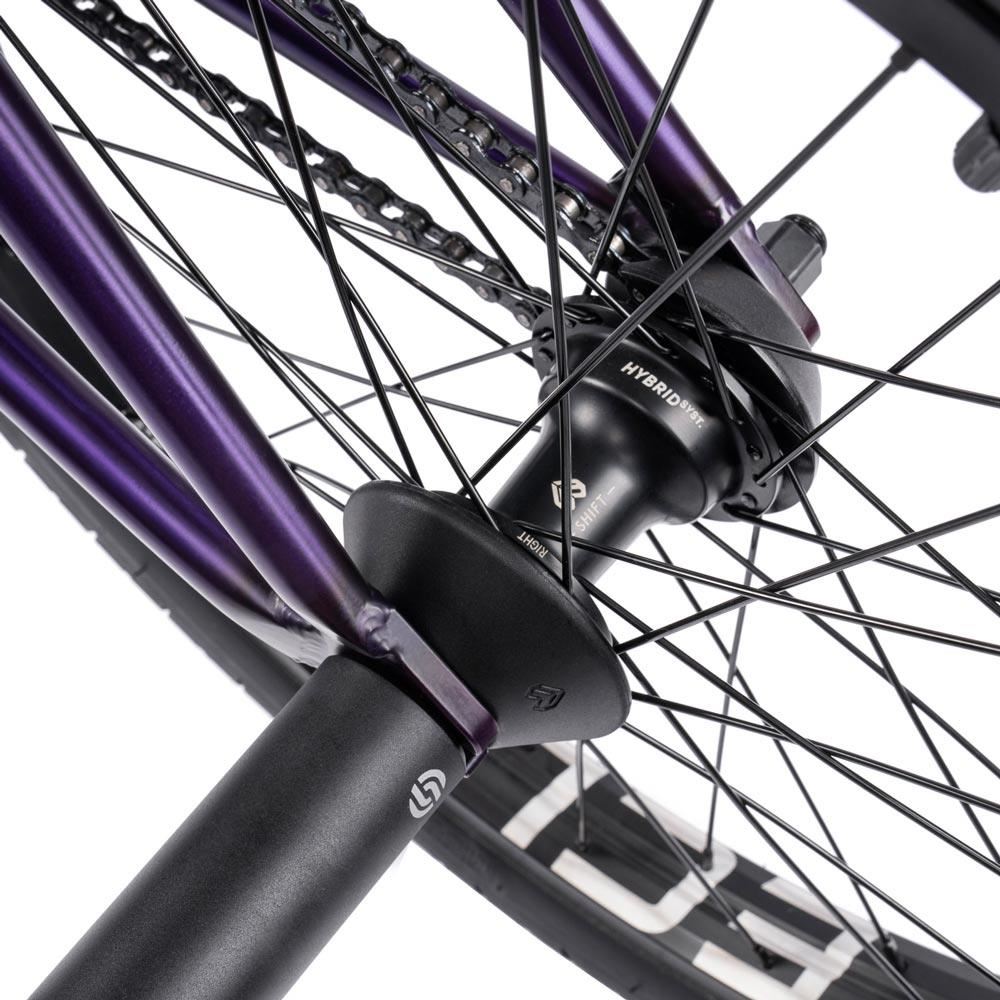

- REAR HUB: 14mm Sealed Freecoaster
- REAR RIM: Double Wall
- TYRES: 2.35"

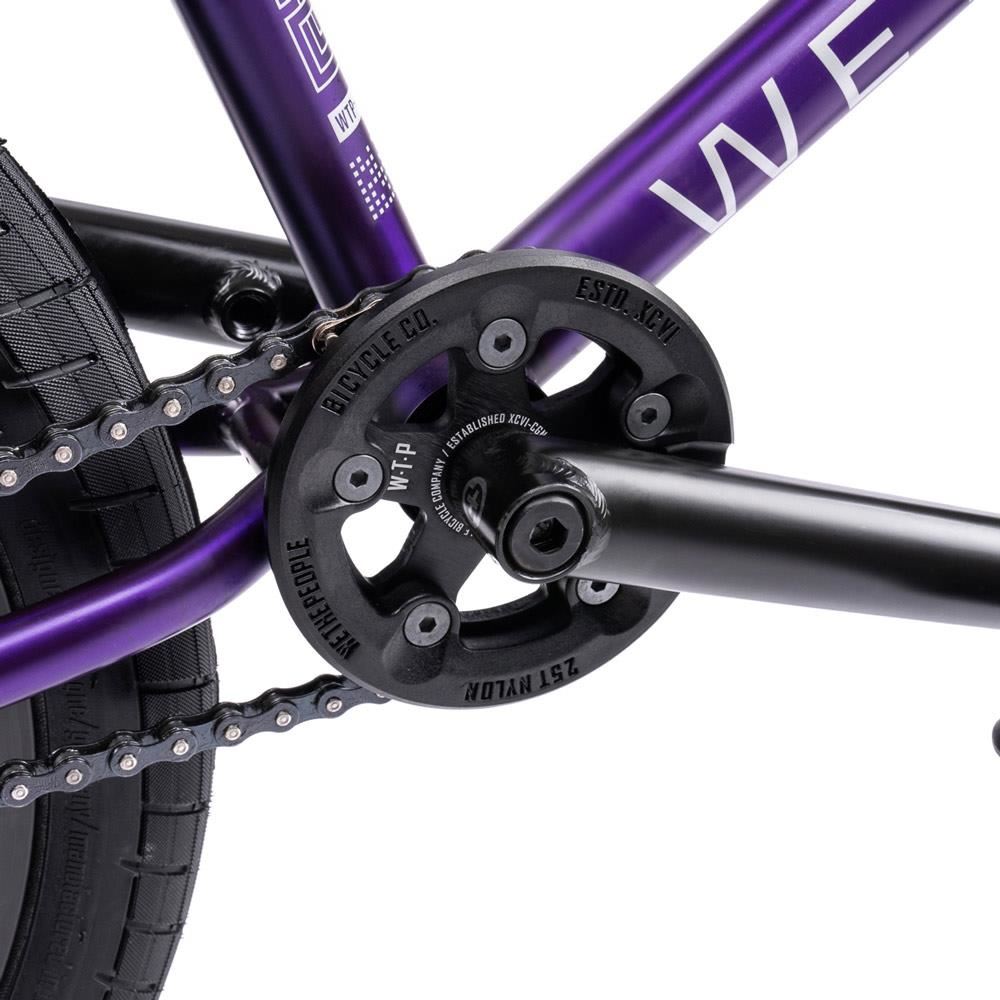

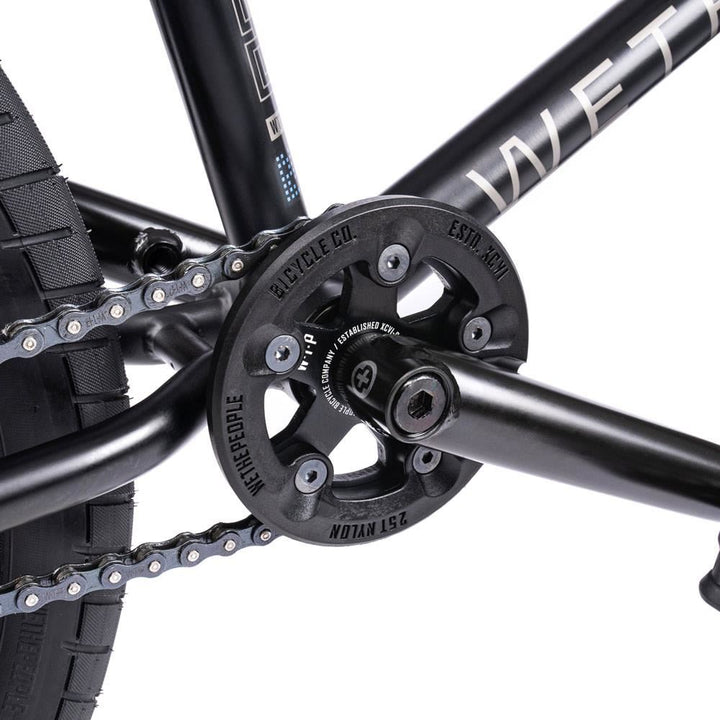

- SPROCKET: 25T
- CRANKS:
- MATERIAL: Chromoly
- TYPE: 3-Piece

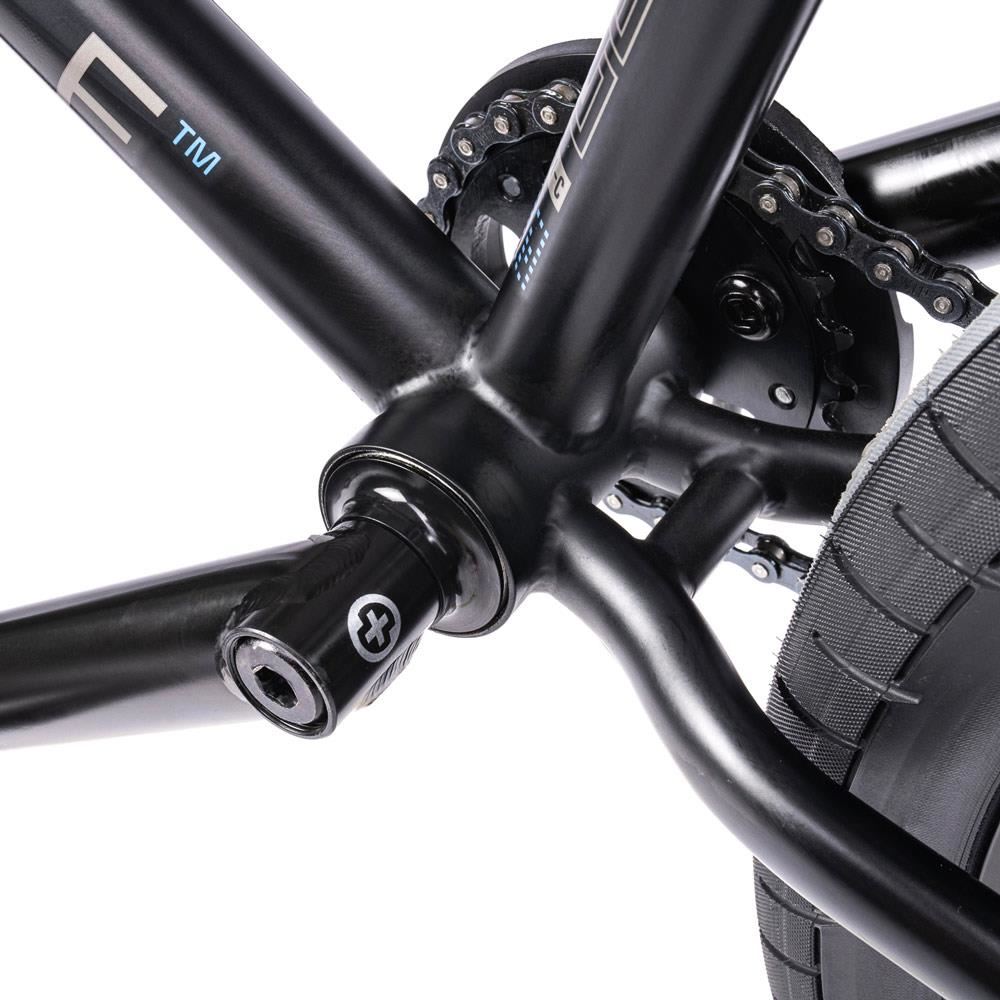

- ARM LENGTH: 160mm - BB: 19mm Mid
- PEDALS: Nylon/Fiberglass

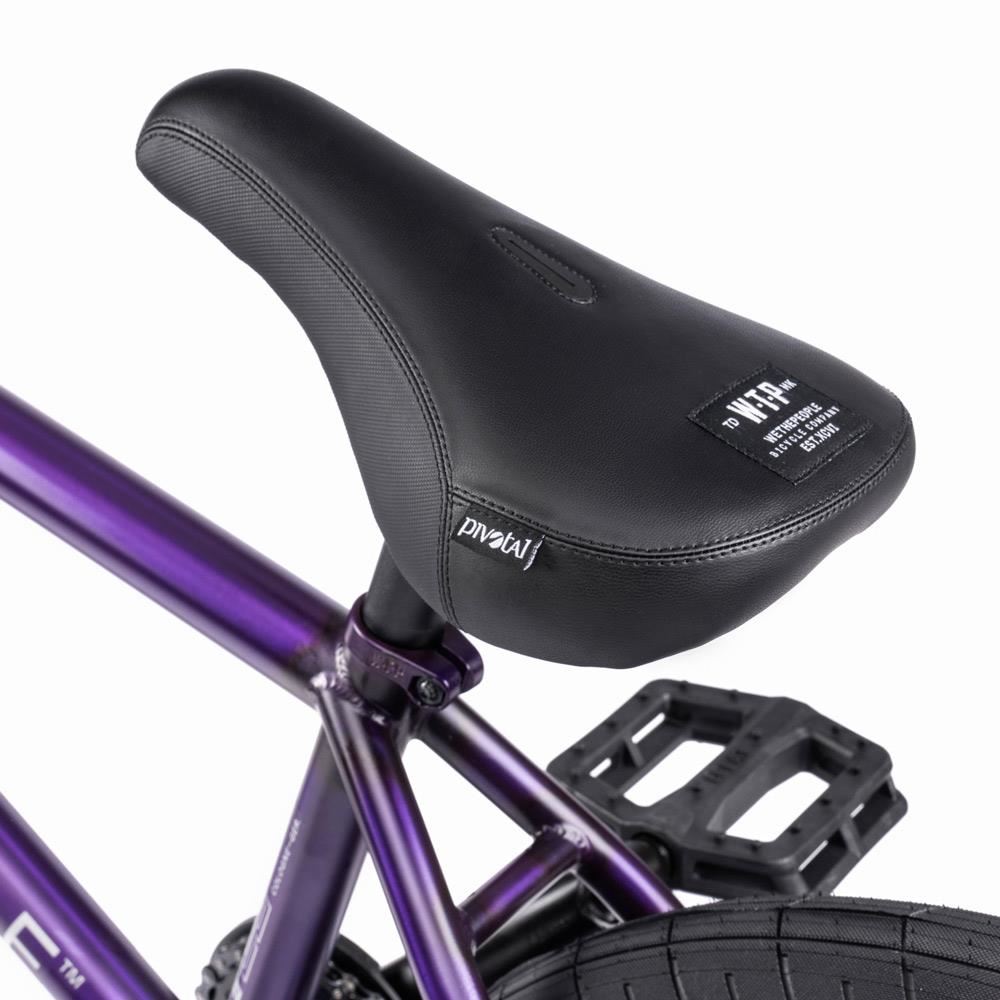

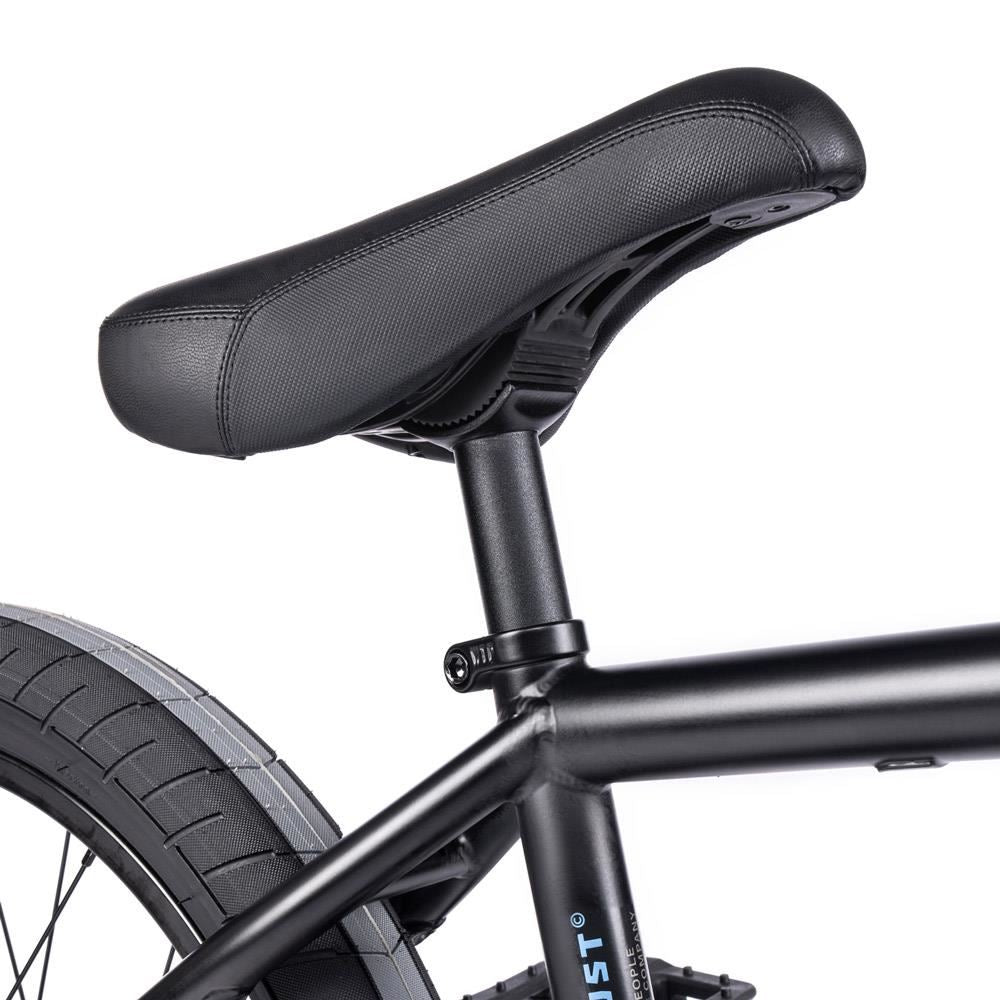

- SEAT: Pivotal Seat
- GEARING: 25/9
- WEIGHT: TBC
Product Highlights
- Great for riders who are between 5ft and 6ft tall (150cm - 180cm)
- Designed to excel at Street riding thanks to responsive geometry but will feel at home in any riding environment
- High-quality Chromoly construction
- Fitted with high-quality aftermarket components
- Strong and durable double walled rims
NEED SOME HELP CHOOSING A BMX BIKE?
We have compiled a complete BMX buyers guide to help you through the process! Keep reading to find out more about your perfect BMX bike. Here at SourceBMX we are all riders, so we can offer advice that only 100% rider-owned BMX shops can - just ask.
Click here to view all BMX Bikes
BMX BIKE SIZE GUIDE
BMX bikes are measured in two ways: the size of the wheel (20” is the standard BMX wheel size), and the length of the frame which is gauged by the top tube measurement. We have also simplified for you into XS, Small, Medium, etc.Here is a guide to what size you should be looking for - note that there is some overlap in sizes, as personal preference also comes into the equation!
Rider Height (in) | Rider Height (cm ) | Wheel Size (in) | Top Tube Length (in) |
---|---|---|---|
2FT - 3FT | 60 - 90cm | 12" | 11.5" - 13" |
2'8" - 3'4" | 80 - 100 cm | 14" | 2.8" - 15" |
3FT - 3'8" | 90 - 110cm | 16" | 14.5" - 17" |
3'6" - 4'6" | 105 - 135cm | 18" | 17" - 18.5" |
4'6" - 5'1" (XS) |
135 - 155cm | 20" | 18" - 20" |
4'10" - 5'4" | 147 - 162cm | 20" | 20" - 20.25" (XS - S) |
5'2"- 5'8" | 157 - 173cm | 20" | 20" - 20.5" (S - M) |
5'6" - 6FT | 165 - 185cm | 20" | 20.25" - 21" (M - L) |
6FT + | 180cm + | 20" | 20.75" + (L - XL) |
