Kink Williams Frame
Kink Williams Frame
-

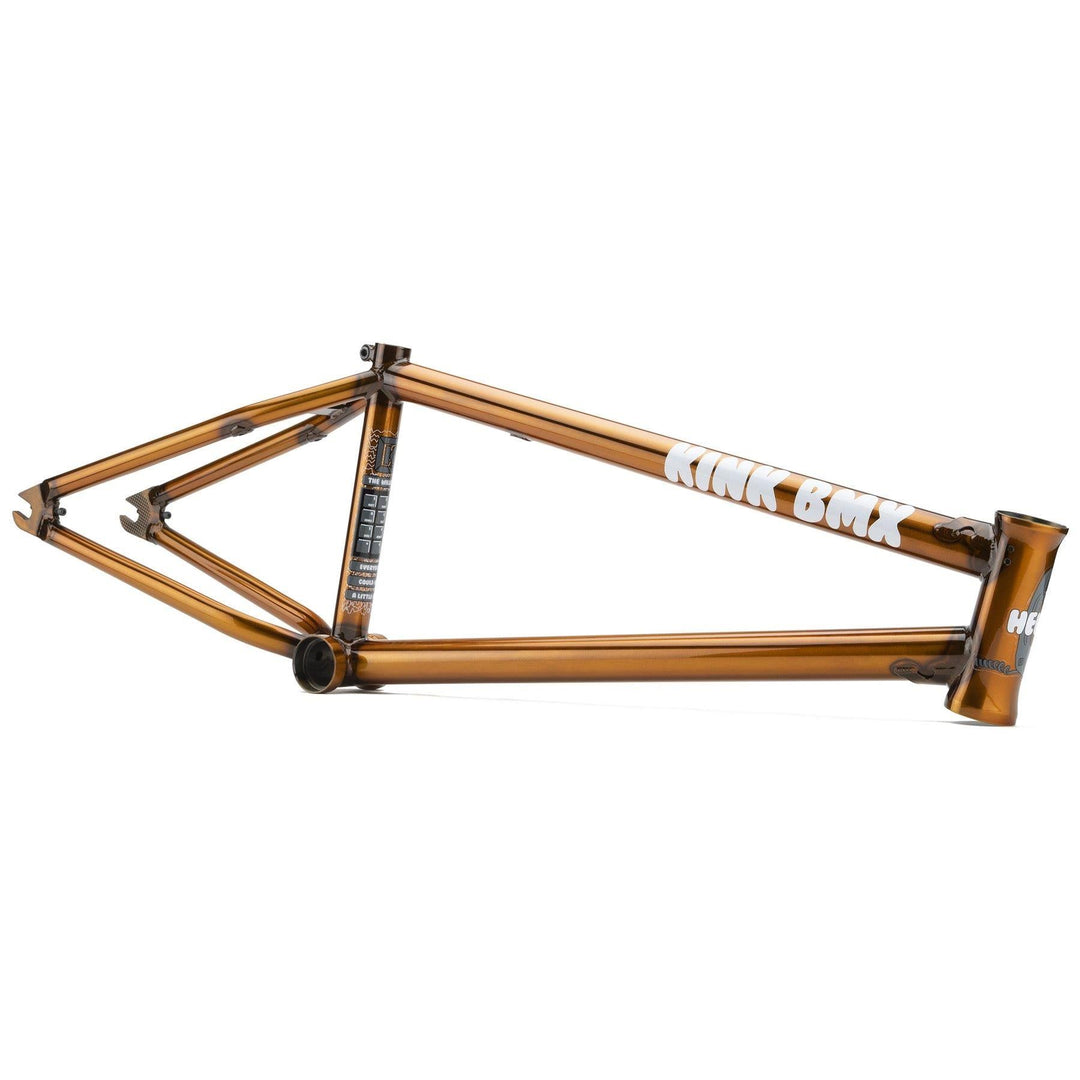

The Williams frame is Nathan Williams’ first signature frame from Kink and features modern street geometry while retaining a classic look.
But still the frame features several subtle details that should not be overlooked. The steeper 75.5° headtube is responsive, and the short 12.75” chainstay length makes the frame nimble without compromising on tyre clearance; fitting up to 2.5” tires.
The double butted toptube and downtube with gussets on both ensure plenty of strength in the front end while the chainstay and seatstay bridge designs allot for generous tyre clearance while adding as much stiffness as possible.
Nathan’s frame of course comes standard with integrated seat post clamp, integrated chain tensioners to keep the wheel in place and removable brake mounts.
Additional details like the custom seat stay bridge badge inlay and interior dropout knurling round out both the good looks and serious functionality of the Williams frame. -
Seen this cheaper elsewhere? We price match any legitimate competitor! For a price match to be accepted, the item has to be identical and be in stock and available for purchase at our competitor. We will notify you by email of the decision when reviewed within 24hours but usually much sooner
-
- Free Shipping to Most EU Regions over 199.99€*
- Complete Tracking On All Orders
- Free Stickers With All Orders
- Select bikes ship with a flat fee from 14.95€*
Product Specs
- MATERIAL: Full 4130 Chromoly
- HEAD TUBE ANGLE: 75.5°
- SEAT TUBE ANGLE: 71°
- CHAIN STAY LENGTH: 12.75"
- BB HEIGHT: 11.7"
- WHEEL SIZE: 20"
- STANDOVER HEIGHT: 9"
- DROPOUT SIZE: 14mm
- HEADSET TYPE: Integrated
- BB TYPE: Mid
- BRAKE MOUNTS: Removable (Included With Frame)
- GYRO TABS: Removable
- WEIGHT: 4.15lbs
Product Highlights
- Responsive Geometry with Short Backend and Steep Headtube
- Great all round frame for all types of riding
- Built in chain tensioners
- Wide rear end for extra tire clearance
- Removable brake hardware
90 Day Returns
Duty Free Shipping from Germany
100% Secure Shopping
Customers Rate Us Excellent!
UNDERSTANDING FRAME GEOMETRY
BMX frame geometry can look daunting, but thanks to our handy guide below you will have it figured out in no time. Remember, we're all BMXers here so if you have any questions just ask.
Keep reading to find your perfect frame, or click below to watch the buyers guide video.
FRAME SIZE CHART
Frame sizing is very much a personal preference: some riders like them longer, others shorter. Here's a rough guide - if you have any questions remember we are here to help!3ft - 3ft 8" - best suited to a 16" BMX bike
3ft 8" - 4ft - best suited an 18" BMX bike
4ft - 5ft - 18" to 20" top tube
5ft - 5ft 4" - 20" to 20.25" top tube
5ft 4" - 5ft 8" - 20.25" to 21" top tube
5ft 8" - 6ft - 21" to 21.25" top tube
6ft plus - 21" top tube or longer
Rider Height (in) | Rider Height (cm) | Top Tube Length |
---|---|---|
5' | 152 | 20" |
5'3" | 160 | 20.5" |
5'6" | 167 | 20.75" |
5'9" | 175 | 21" |
6' | 182 | 21.25" |
6'6" | 200 | 21.5" |
FRAME GEOMETRY
Frame geometry can take a bit of understanding - but here at SourceBMX we are here to help! The first thing to understand is that BMX frame sizing is best measured by the length of the top tube - shown here as TT. Keep reading on to understand how the angles change how your frame will feel!![](http://eu.sourcebmx.com/cdn/shop/files/frame-geometry.jpg?v=1684415260)
