Product Specs
- FRAME MATERIAL: 1020 Hi-Ten Steel Frame – TT & DT 100% Chromoly
- WHEEL SIZE: 20"
- TOP TUBE LENGTH: 20.5"
- CHAIN STAY LENGTH: 13.25”
- HEADTUBE ANGLE: 75°
- SEAT TUBE ANGLE: 71°
- FORKS: 1020 Hi-Ten Steel - 2-PC Chromoly Steerer, Tapered Legs, 28mm offset
- BARS: 1020 Hi-Ten Steel - 8.9” Rise, Back: 12°/ Up: 2°, Width: 29.0”

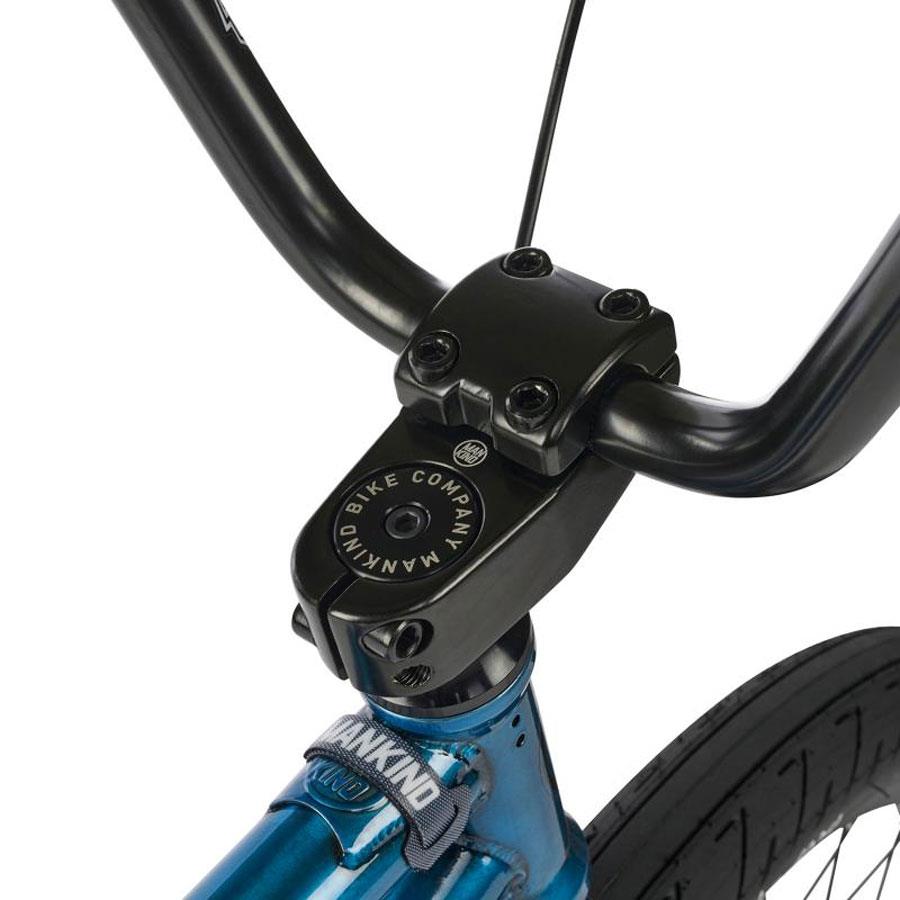

- STEM: Mankind Advance Stem - Alloy - 50mm reach
- HEADSET: Mankind Control Sealed Integrated
- BRAKE MOUNTS: Welded U-Brake
- BRAKES: Alloy U-brake
- FRONT HUB: Mankind Control Sealed – Male 3/8” Axle
- FRONT RIM: Alloy - Double Wall 36H
- REAR HUB: Mankind Control Cassette Hub – Sealed - 14mm axle - 9t Driver
- REAR RIM: Alloy - Double Wall 36H
- TYRES: Shadow Strada Nuova LP 2.30”
- SPROCKET: Mankind Control Alloy 25t
- CRANKS: 3-piece Chromoly – 8 Spline - 170mm - 19mm
- BB: Mid BB Sealed - 19mm
- PEDALS: Mankind Control Plastic

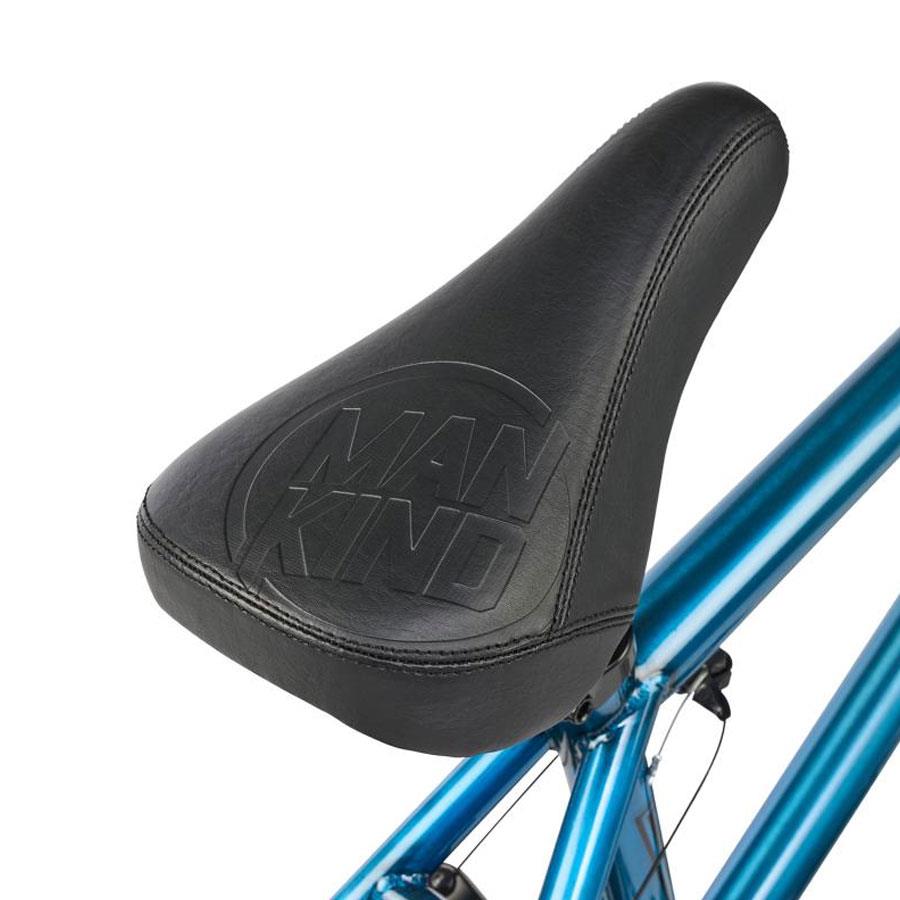

- SEAT: Mankind Control Mid Seat/Post Combo debossed
- GEARING: 25/9
- WEIGHT: 24.91lbs
Product Highlights
- Great for riders who are between 5ft and 6ft tall (150cm - 180cm)
- A great all rounder suitable for any type of riding
- High-quality Chromoly construction
- Sealed bearings throughout
- High-quality aftermarket tires
NEED SOME HELP CHOOSING A BMX BIKE?
We have compiled a complete BMX buyers guide to help you through the process! Keep reading to find out more about your perfect BMX bike. Here at SourceBMX we are all riders, so we can offer advice that only 100% rider-owned BMX shops can - just ask.
Click here to view all BMX Bikes
BMX BIKE SIZE GUIDE
BMX bikes are measured in two ways: the size of the wheel (20” is the standard BMX wheel size), and the length of the frame which is gauged by the top tube measurement. We have also simplified for you into XS, Small, Medium, etc.Here is a guide to what size you should be looking for - note that there is some overlap in sizes, as personal preference also comes into the equation!
Rider Height (in) | Rider Height (cm ) | Wheel Size (in) | Top Tube Length (in) |
---|---|---|---|
2FT - 3FT | 60 - 90cm | 12" | 11.5" - 13" |
2'8" - 3'4" | 80 - 100 cm | 14" | 2.8" - 15" |
3FT - 3'8" | 90 - 110cm | 16" | 14.5" - 17" |
3'6" - 4'6" | 105 - 135cm | 18" | 17" - 18.5" |
4'6" - 5'1" (XS) |
135 - 155cm | 20" | 18" - 20" |
4'10" - 5'4" | 147 - 162cm | 20" | 20" - 20.25" (XS - S) |
5'2"- 5'8" | 157 - 173cm | 20" | 20" - 20.5" (S - M) |
5'6" - 6FT | 165 - 185cm | 20" | 20.25" - 21" (M - L) |
6FT + | 180cm + | 20" | 20.75" + (L - XL) |
