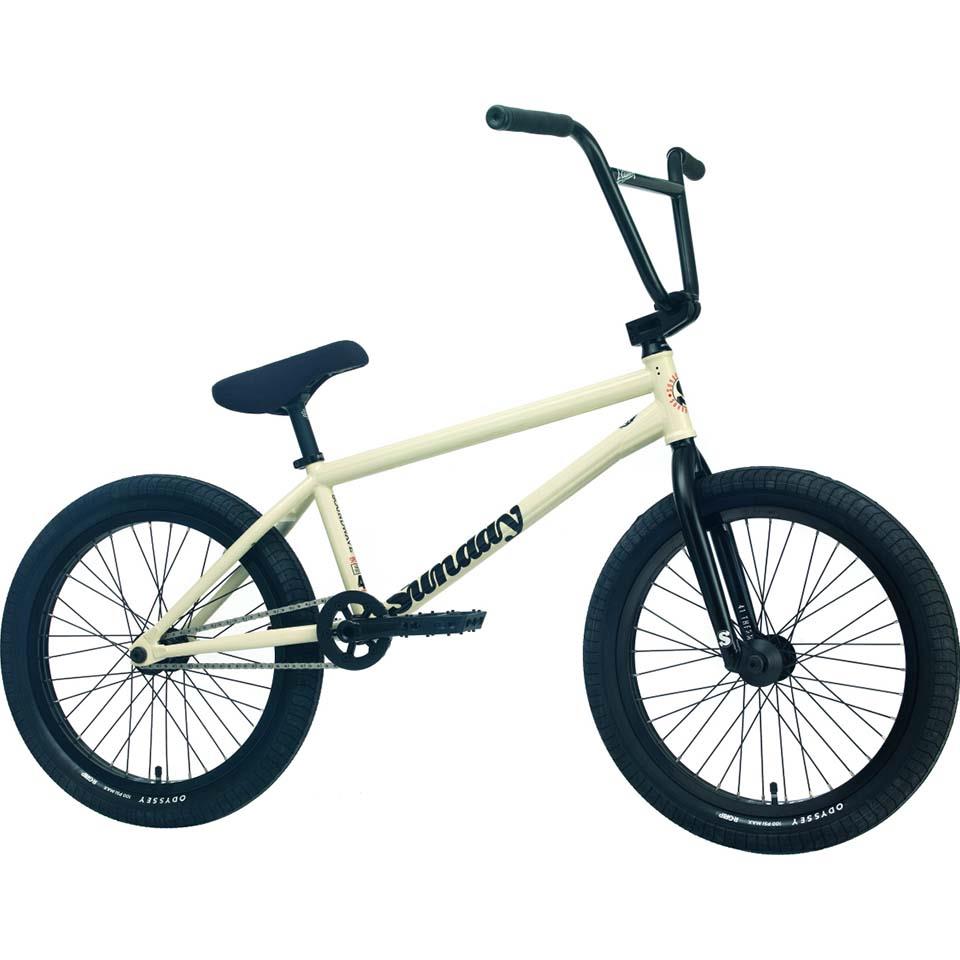

Product Specs
- FRAME MATERIAL: 100% Chromoly
- WHEEL SIZE: 20"
- TOP TUBE LENGTH: 21"
- CHAIN STAY LENGTH: 13.2"-13.5"
- HEADTUBE ANGLE: 75°
- SEAT TUBE ANGLE: 71°
- FORKS: Sunday Darkwave, 20", 100% chromoly, 41-Thermal, aftermarket fork, 28mm offset
- BARS: Odyssey Superhighway, 9.5 x 29", 11° backsweep, 1° upsweep, 100% chromoly, 41-Thermal, aftermarket bar
- STEM: Sunday Freeze top load, 48mm
- HEADSET: FSA integrated conical, 1-1/8"
- BRAKE MOUNTS: Removable
- BRAKES: Odyssey Springfield U-brake
- FRONT HUB: Odyssey Vandero Pro, 36H, sealed, 3/8" female axle, 2 plastic guards
- FRONT RIM: Odyssey Hazard Lite, 20", 36H
- REAR HUB: Odyssey Clutch V2 freecoaster, 36H, 14mm female axle w/ 9T driver, RHD, non-drive side plastic guard
- REAR RIM: Odyssey Hazard Lite, 20", 36H
- TYRES: Odyssey Path Pro Aftermarket, 2.4" (F & R)
- SPROCKET: Odyssey Utility Pro, 25T w/ Plastic Guard
- CRANKS: Odyssey Thunderbolt, 170mm, 100% chromoly, 41-Thermal, RHD
- BB: Sealed, Mid, 22mm
- PEDALS: Odyssey Twisted PC Pro
- SEAT: Odyssey Slugger Stitch, Pivotal
- GEARING: 25/9
- WEIGHT: 23.41lbs
Product Highlights
- Longer top tube is great for taller riders who need a bit more room (6ft / 180cm plus)
- Designed to excel at Street riding thanks to responsive geometry but will feel at home in any riding environment
- High-quality Chromoly construction
- Sealed bearings throughout
- Allows for more fakie tricks
NEED SOME HELP CHOOSING A BMX BIKE?
We have compiled a complete BMX buyers guide to help you through the process! Keep reading to find out more about your perfect BMX bike. Here at SourceBMX we are all riders, so we can offer advice that only 100% rider-owned BMX shops can - just ask.
Click here to view all BMX Bikes
BMX BIKE SIZE GUIDE
BMX bikes are measured in two ways: the size of the wheel (20” is the standard BMX wheel size), and the length of the frame which is gauged by the top tube measurement. We have also simplified for you into XS, Small, Medium, etc.Here is a guide to what size you should be looking for - note that there is some overlap in sizes, as personal preference also comes into the equation!
Rider Height (in) | Rider Height (cm ) | Wheel Size (in) | Top Tube Length (in) |
---|---|---|---|
2FT - 3FT | 60 - 90cm | 12" | 11.5" - 13" |
2'8" - 3'4" | 80 - 100 cm | 14" | 2.8" - 15" |
3FT - 3'8" | 90 - 110cm | 16" | 14.5" - 17" |
3'6" - 4'6" | 105 - 135cm | 18" | 17" - 18.5" |
4'6" - 5'1" (XS) |
135 - 155cm | 20" | 18" - 20" |
4'10" - 5'4" | 147 - 162cm | 20" | 20" - 20.25" (XS - S) |
5'2"- 5'8" | 157 - 173cm | 20" | 20" - 20.5" (S - M) |
5'6" - 6FT | 165 - 185cm | 20" | 20.25" - 21" (M - L) |
6FT + | 180cm + | 20" | 20.75" + (L - XL) |
