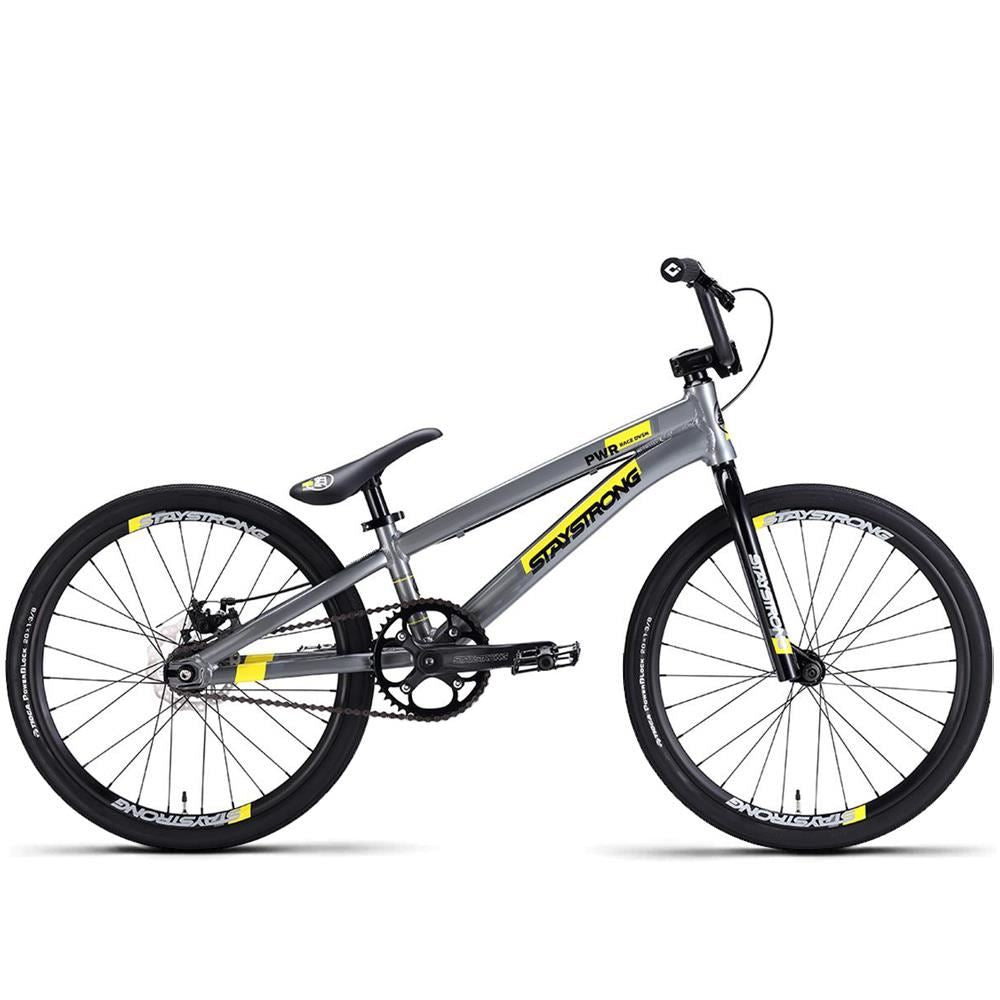

Product Specs

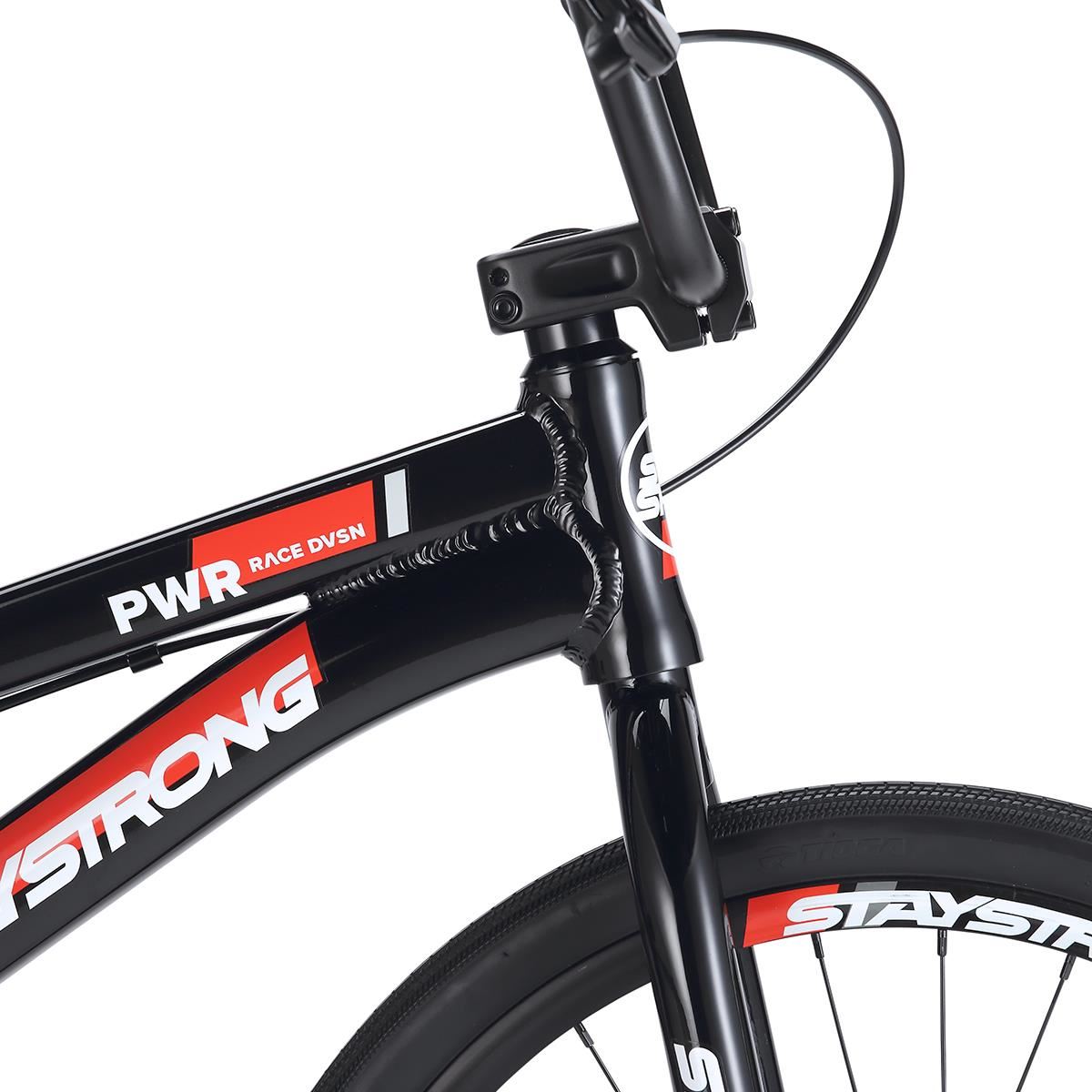

- FRAME MATERIAL: 6061 Alloy
- WHEEL SIZE: 20"
- TOP TUBE LENGTH: 19.5"
- CHAIN STAY LENGTH: 13.3"
- HEAD TUBE ANGLE: 73°
- SEAT TUBE ANGLE: 70°

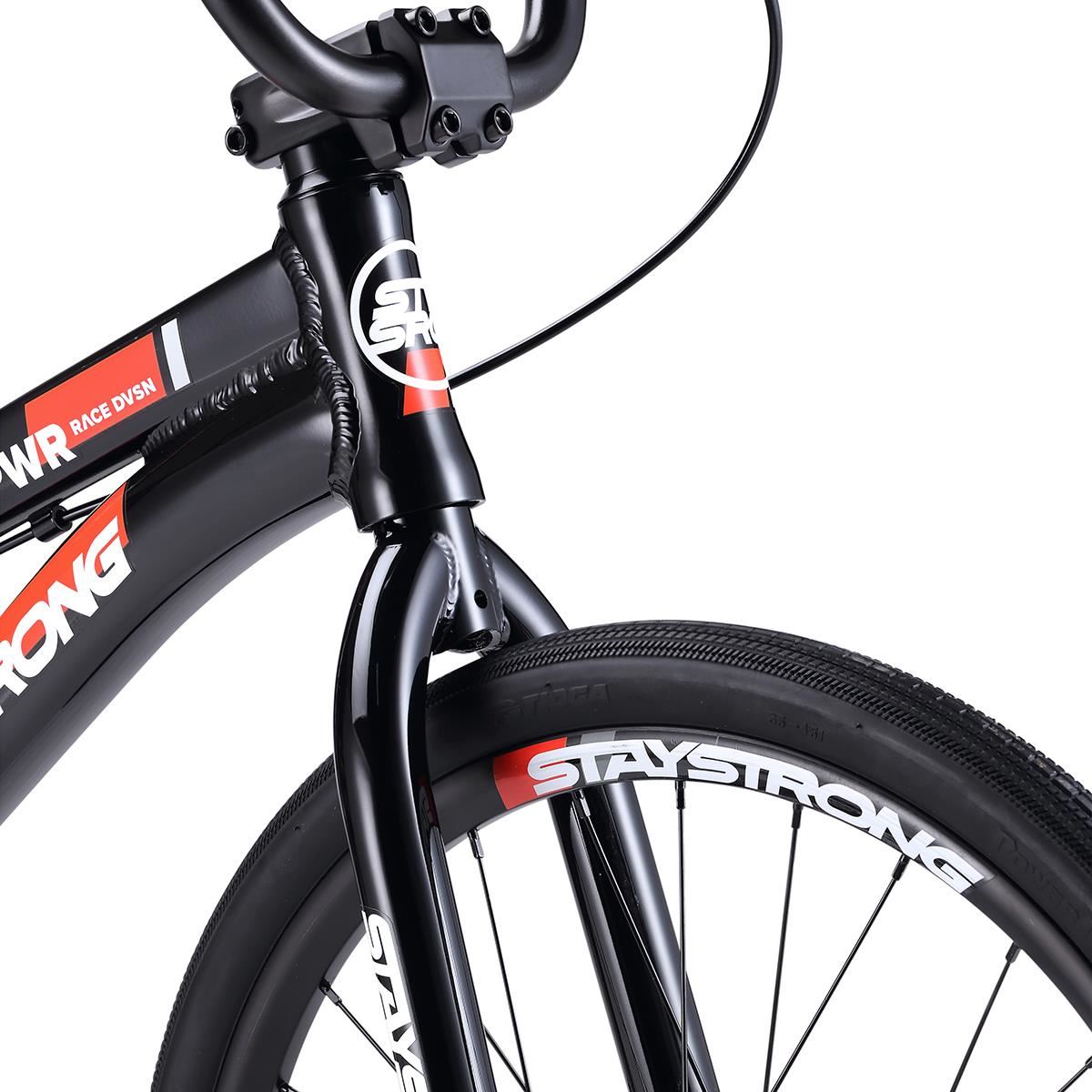

- FORKS: Full 4130 Chromoly
- BARS: Alloy 5.5"
- STEM: Forged Alloy Front Load, 50mm
- HEADSET: Sealed Intergrated
- BRAKE MOUNTS: Frame Mounted Disc Brake

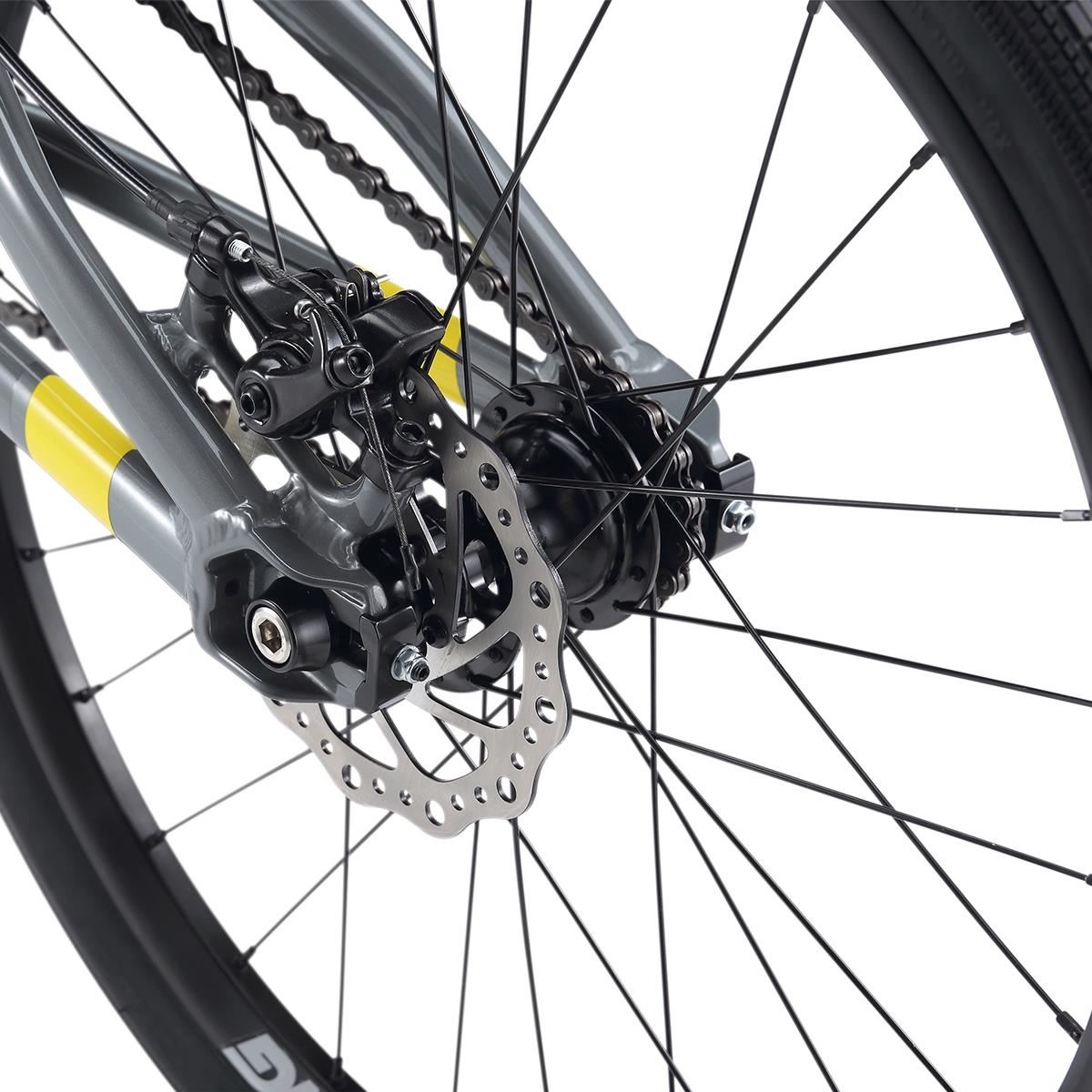

- BRAKES: Mechanical Disc brake with Alloy Lever
- FRONT HUB: 28h Alloy Hub wih fully sealed bearing
- FRONT RIM: 28h Alloy Double Wall
- REAR HUB: 28h Alloy Cassette Hub with Disc - 16T Cog
- REAR RIM: 28h Alloy Double Wall
- TYRES: Front: Tioga Powerblock 20 x 1-3/8", Rear: Tioga Powerblock 20 x 1-3/8"

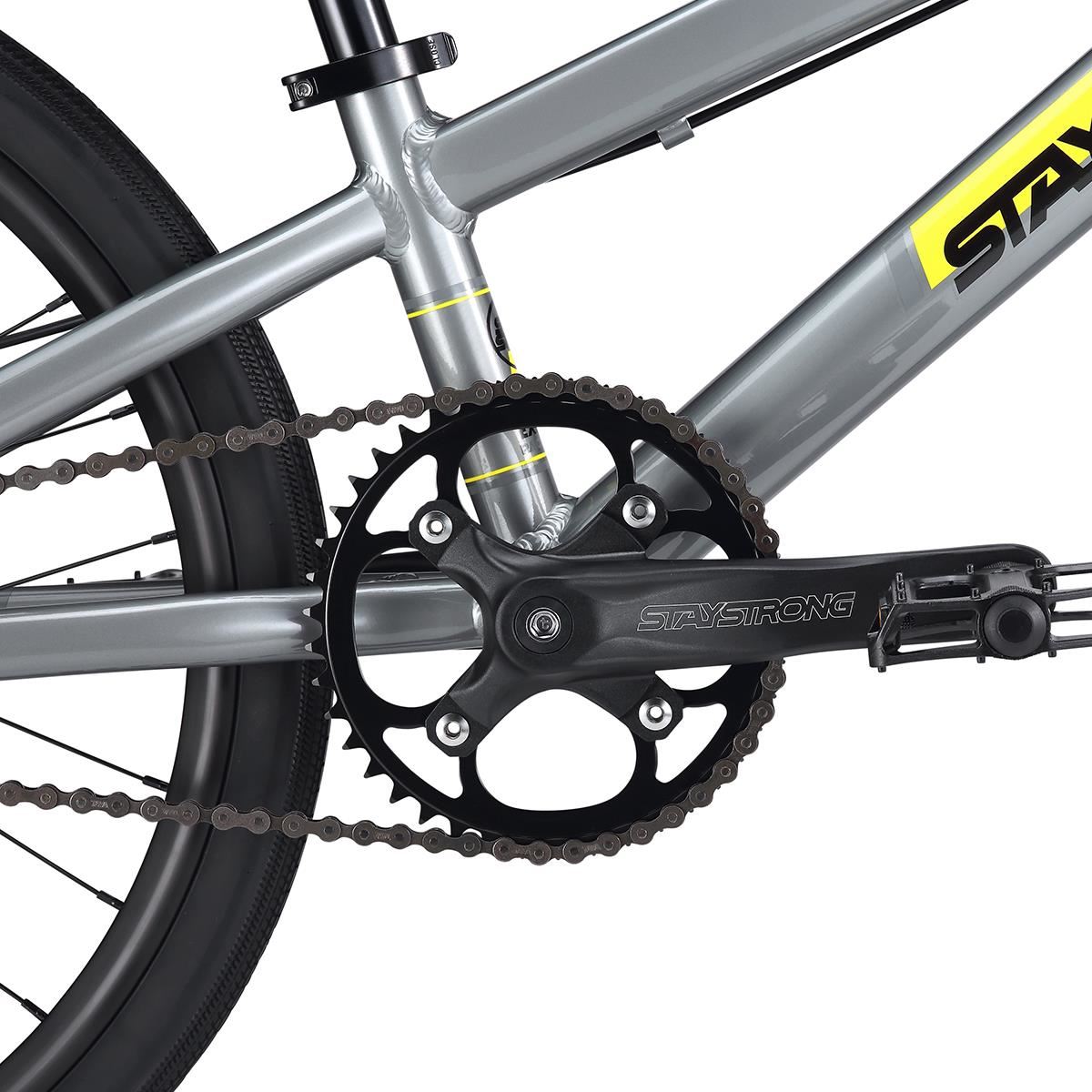

- SPROCKET: Steel 42t
- CRANKS: Alloy 3pc 165mm
- BB: JIS
- PEDALS: Slim Nylon

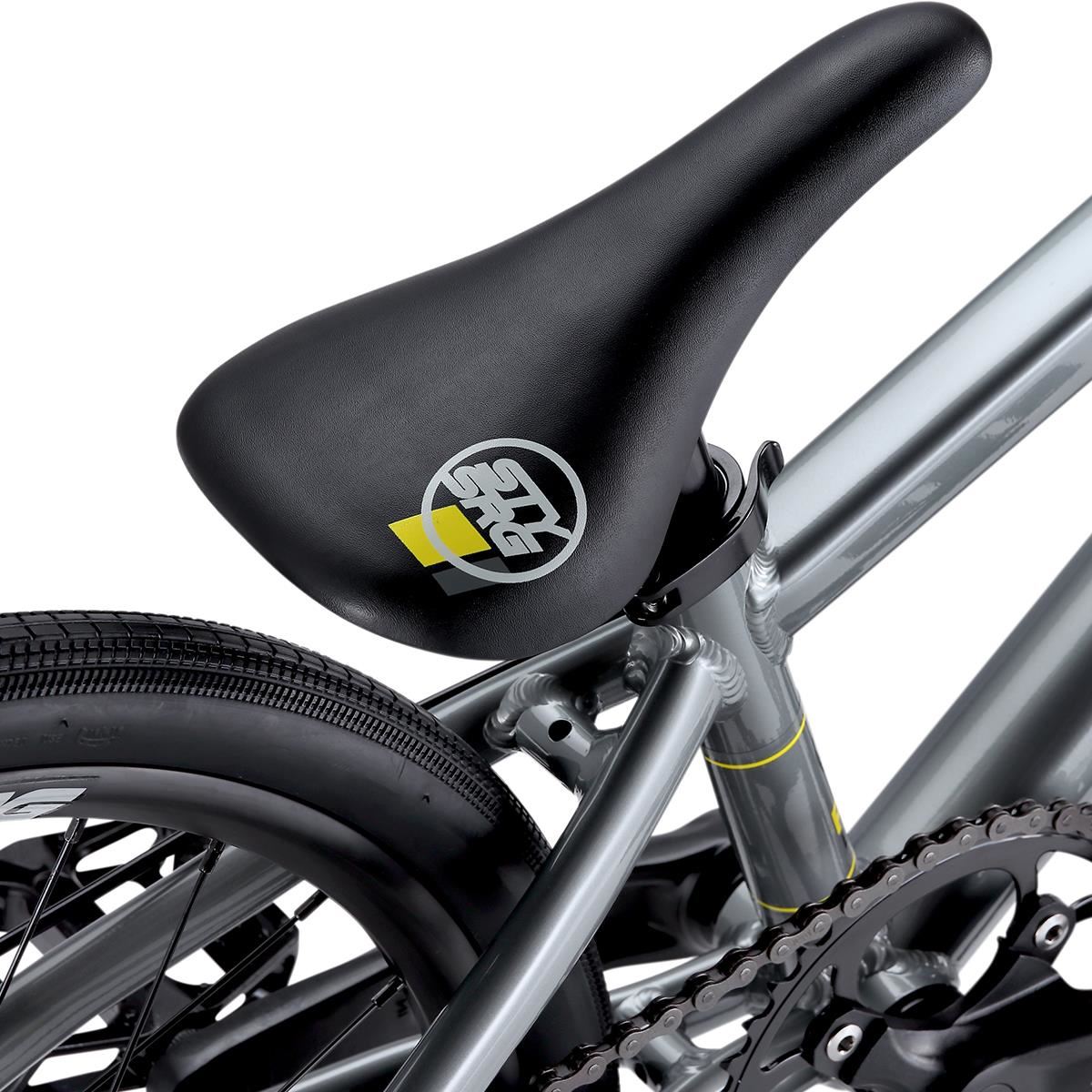

- SEAT: Stay Strong Slim Combo Seat/Post
- GEARING: 42/16
- WEIGHT: 20.7lbs / 9.4Kgs
Product Highlights

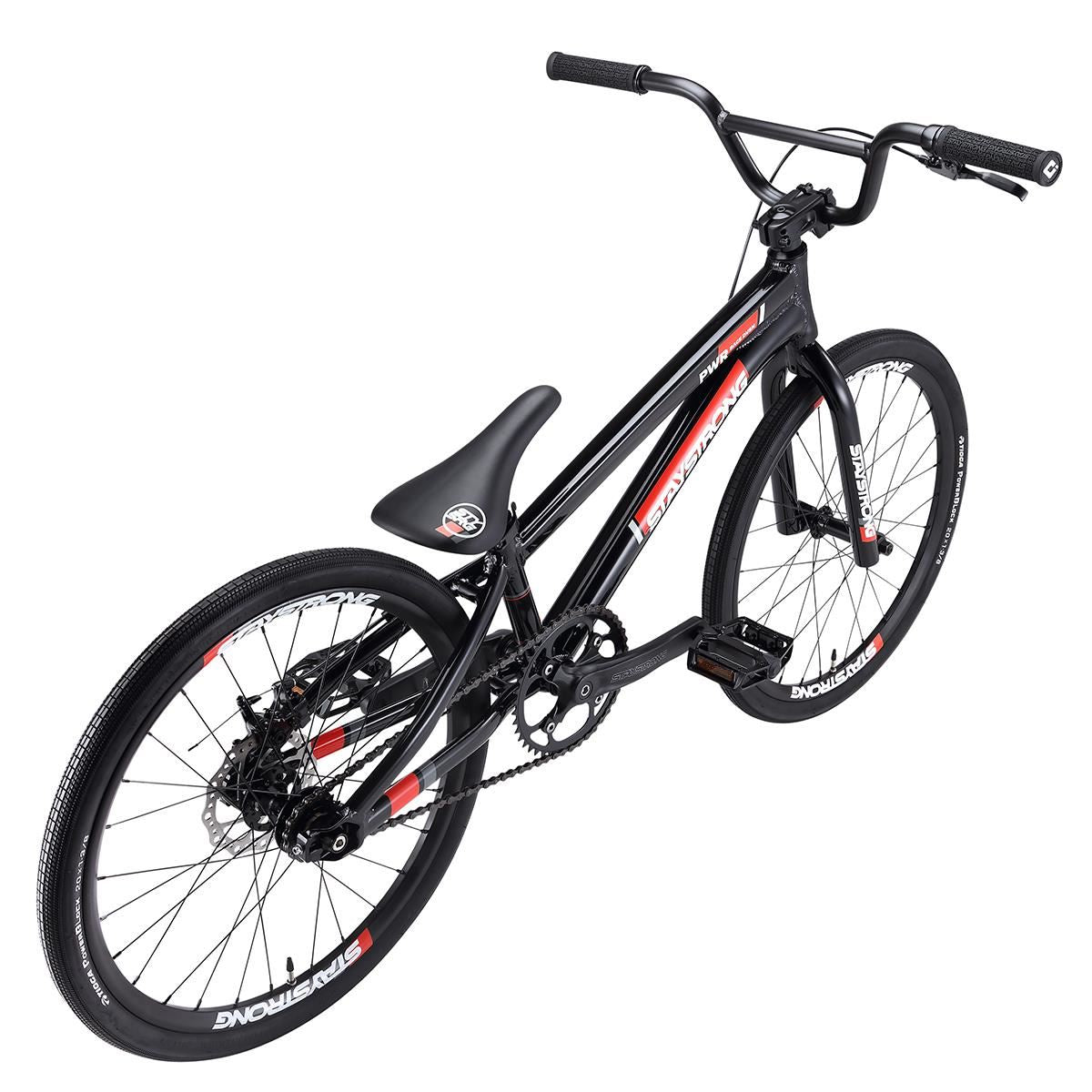

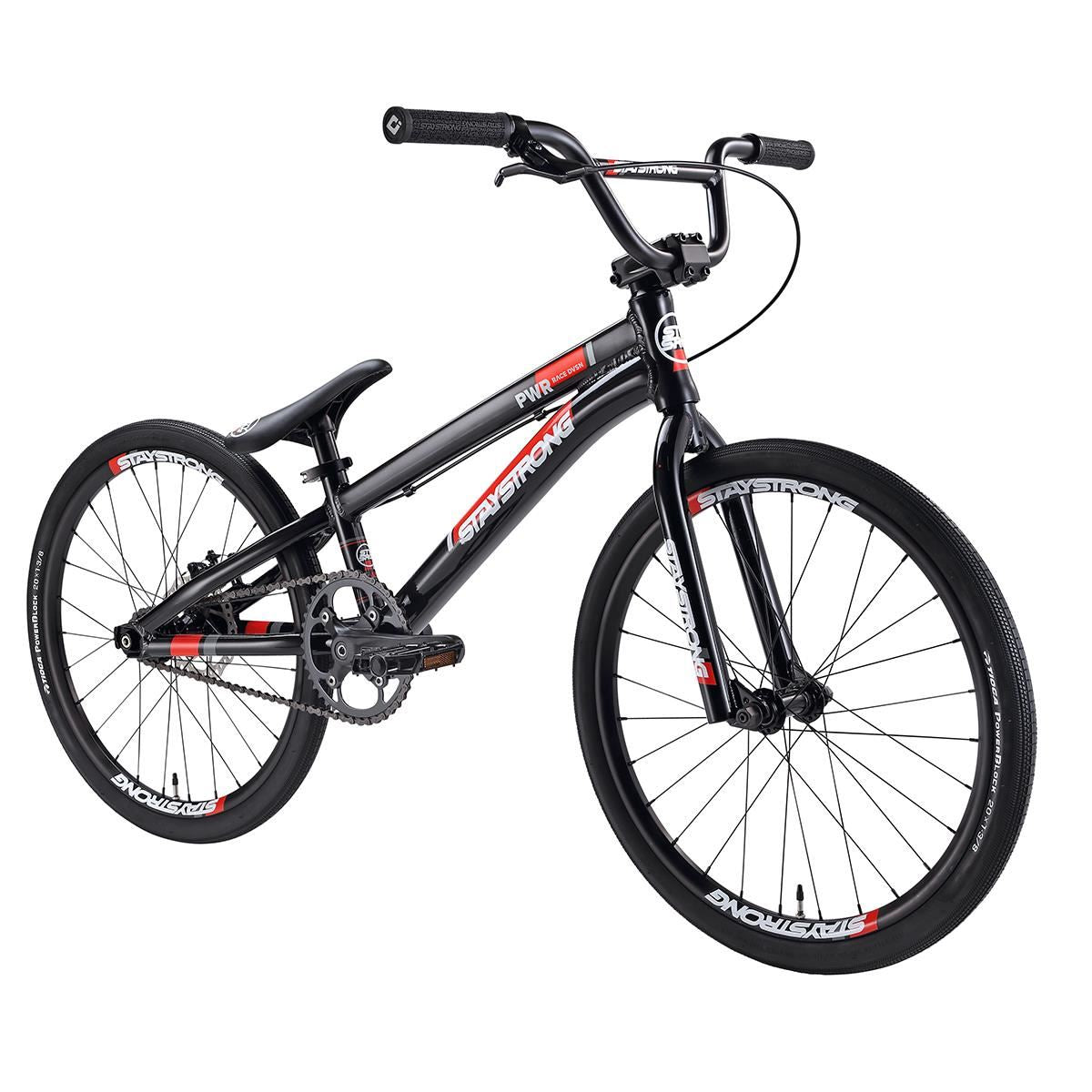

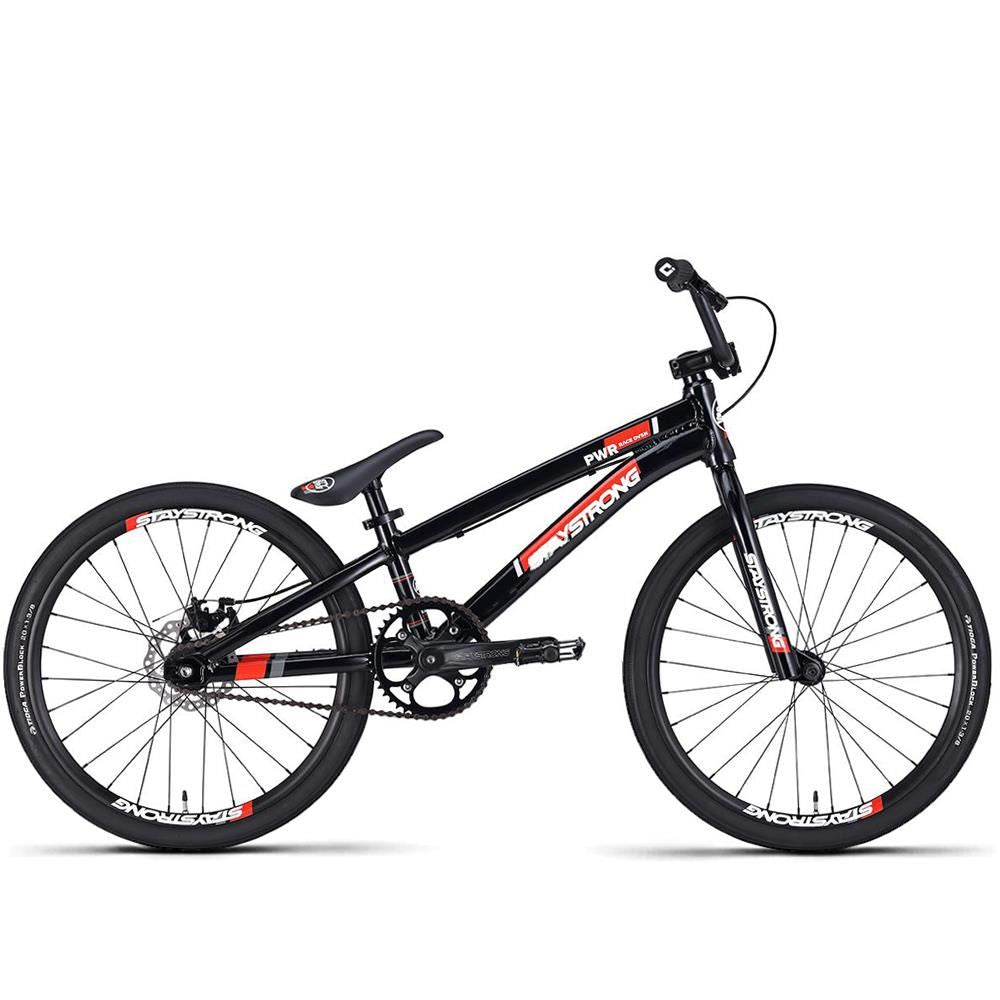

- Expert sized BMX bike. Designed for the needs of racers who are 5ft" - 5ft 4" (150cm - 165cm)
- A BMX race specific bike great for those riders just getting started
- Lightweight 1-3/8" wide wheels for low rolling resitance
- Responsive mechanical disc brake.
- Lightweight 6061 alloy frame
NEED MORE HELP UNDERSTANDING BMX RACE BIKES?
We have compiled a complete BMX Race Bike Buyers Guide to help you through the process of finding your perfect race bike. Here at sourcebmx we are all riders so we can offer advice that only 100% rider-owned bmx shops can - just ask!
Click here to view all BMX Race Bikes
BMX RACE BIKE SIZING
The first thing you will need to do is make sure you get the correct size BMX race bike, based on your height. BMX race bikes are sized from Mini (The smallest) through to Pro (adult) sizes. These sizes refer to the overall size of the frames and parts but the wheel diameter will remain the same at 20” despite the width of the tyres varying.Take a ride through our handy guide to find out what size bike best suits you.
Note: there is some overlap between sizes as personal preference comes into the equation.
Rider Height (ft & in) | Rider Height (cm) | Wheel Width (in) | Bike Size |
---|---|---|---|
Up to 4'4" | Up to 130cm | 1 - 1/8 | Micro Mini |
4'2" - 4'10" | 127cm - 148cm | 1 - 1/8 | Mini |
4'6" - 5'1" | 138cm - 155cm | 1 - 1/8 | Junior |
5'0" - 5'4" | 150cm - 165cm | 1 - 3/8 | Expert |
5'2" - 5'6" | 155cm - 170cm | 1 - 3/8 | Expert XL |
5'3" - 5'8" | 160cm - 175cm | 1.75 | Pro |
5'7" - 6'0" | 170cm - 185cm | 1.75 | Pro XL |
6'0" + | 185cm + | 1.75 | Pro XL + |
