Fiend Mills Frame
Regular price
€399.95
€359.96
Fiend Mills Frame
Rated 5.0 out of 5 stars
1 Review
-

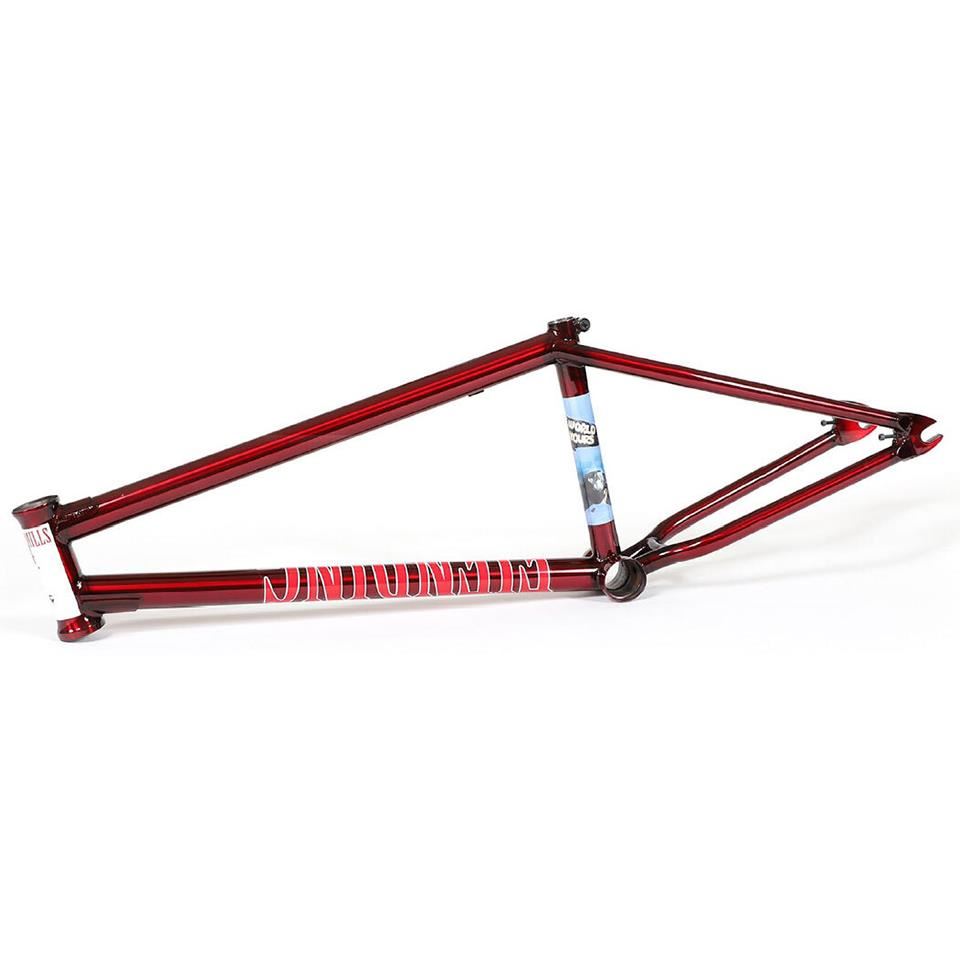

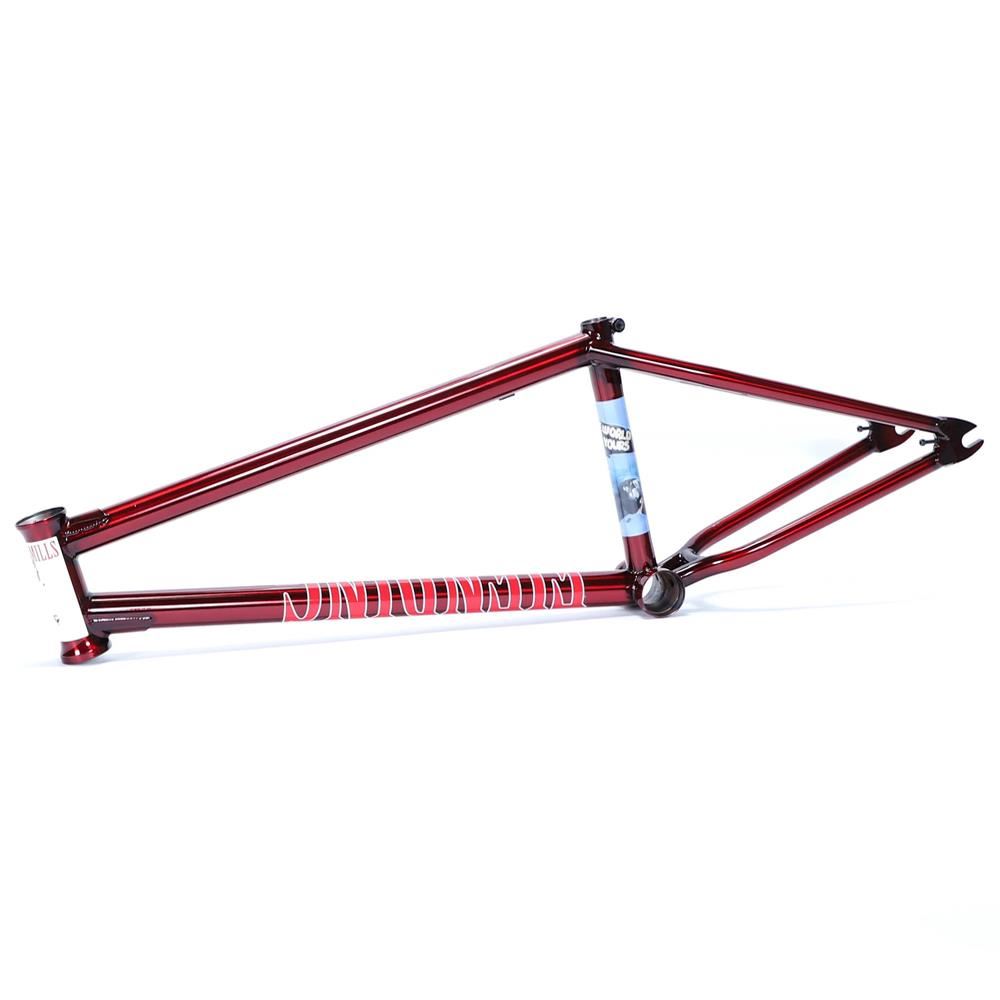

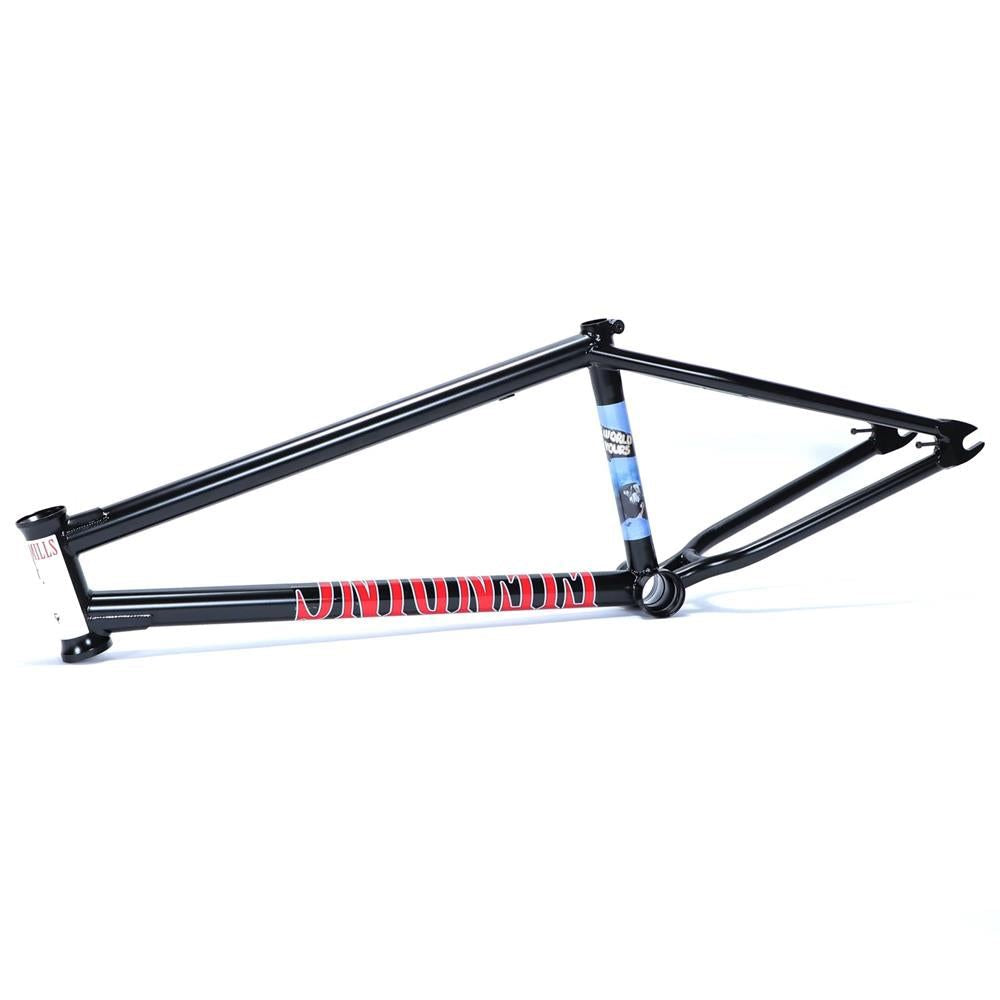

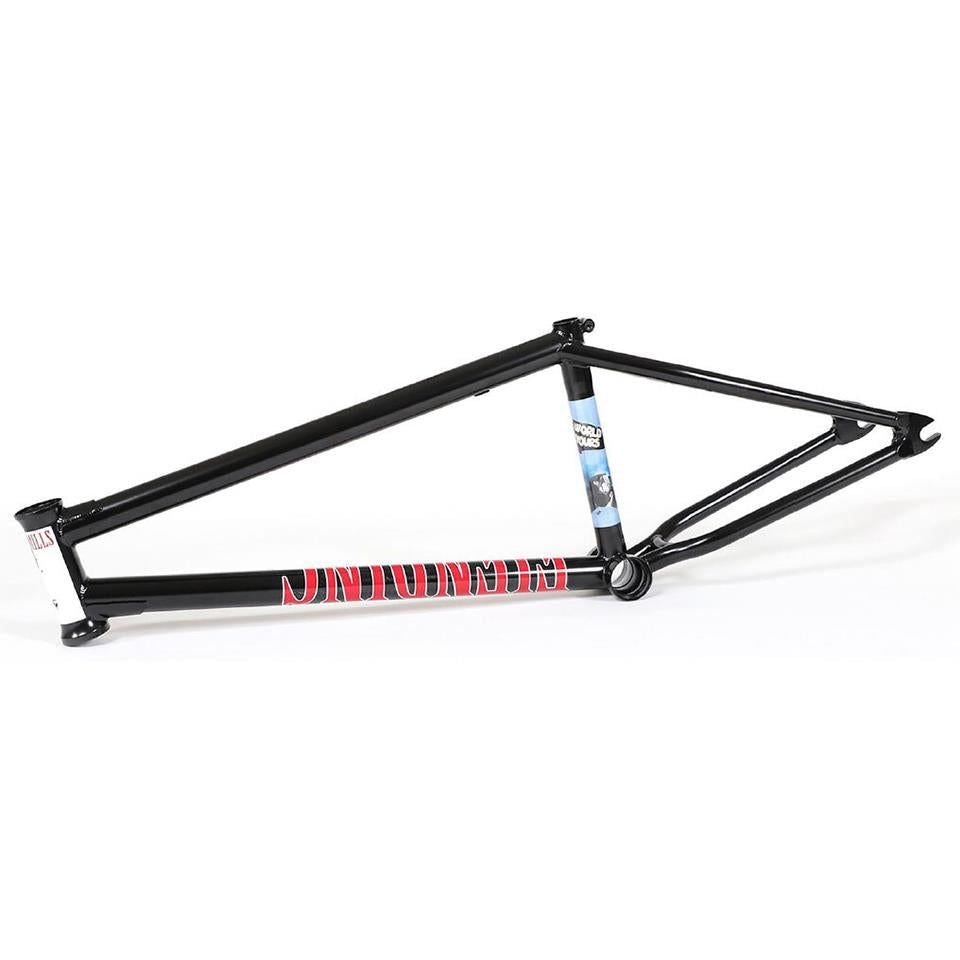

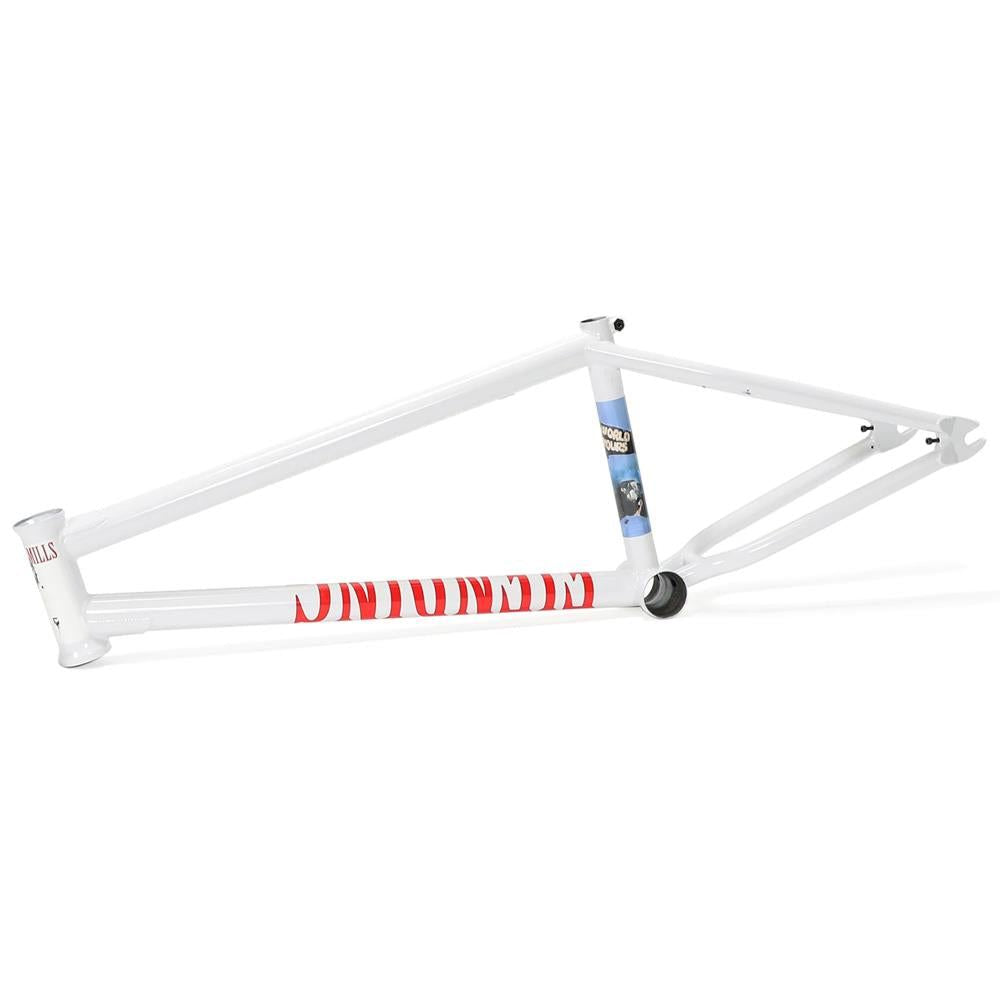

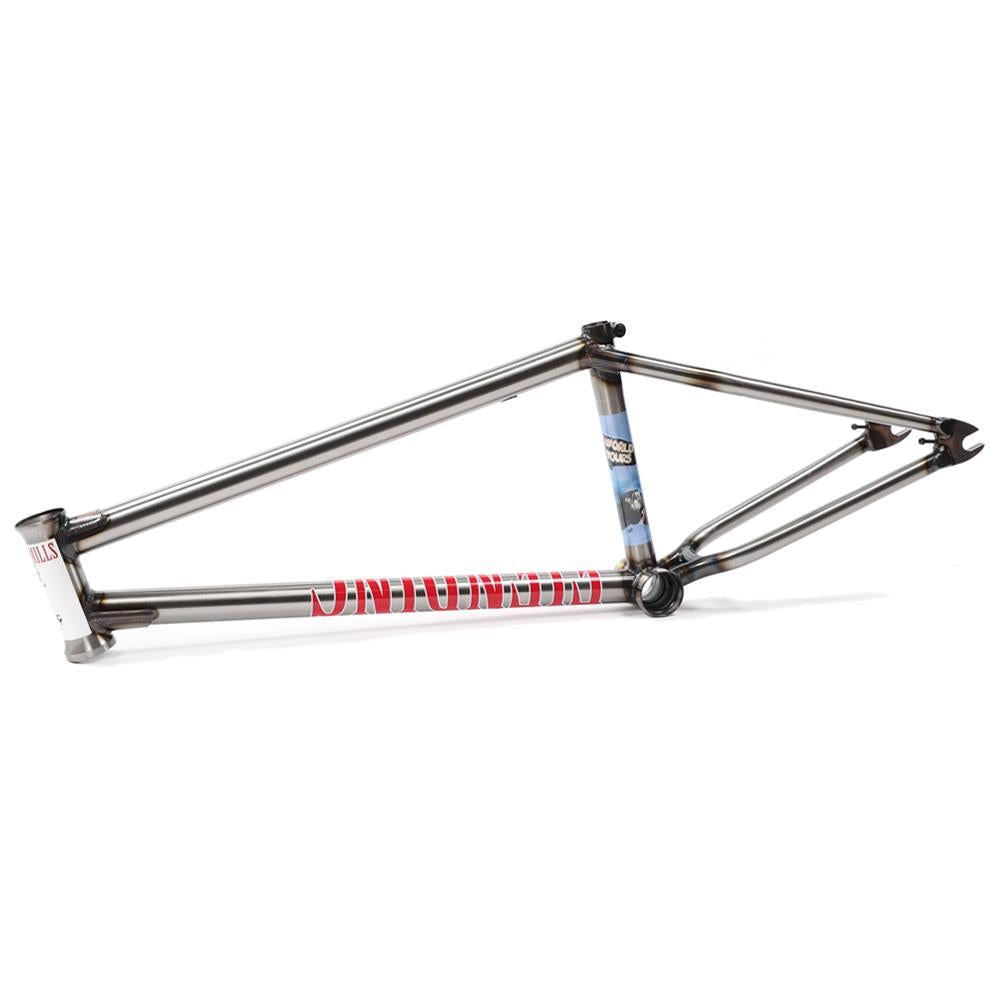

Lewis Mills signatire frame frome Fiend. Constructed with 100% chromoly tubing throughout, it features a heat-treated Mid BB shell, 5" integrated headset head tube with gyro tabs, an externally gusseted double butted top tube, externally gusseted down tube, externally butted seat tube with integrated clamp, tapered seat stays, ovalized chain stays and 8mm thick dropouts with integrated chain tensioners.
-
Seen this cheaper elsewhere? We price match any legitimate competitor! For a price match to be accepted, the item has to be identical and be in stock and available for purchase at our competitor. We will notify you by email of the decision when reviewed within 24hours but usually much sooner
-
- Free Shipping to Most EU Regions over 199.95€*
- Complete Tracking On All Orders
- Free Stickers With All Orders
- Select bikes ship with a flat fee from 14.95€*
Product Specs
- MATERIAL: Chromoly
- HEAD TUBE ANGLE: 75.5°
- SEAT TUBE ANGLE: 71°
- CHAIN STAY LENGTH: 13.125"
- BB HEIGHT: TBC
- WHEEL SIZE: 20"
- STANDOVER HEIGHT: 9.5"
- DROPOUT SIZE: 14mm
- HEADSET TYPE: Integrated
- BB TYPE: Mid
- BRAKE MOUNTS: Removable
- GYRO TABS: Removable
- WEIGHT: 5lbs
Product Highlights
- Responsive Geometry with Short Backend and Steep Headtube
- Best suited to Street and Park riding
- High-quality Chromoly construction
- Gusseted tubing for added strength
- Built in chain tensioners
90 Day Returns
Duty Free Shipping from Germany
100% Secure Shopping
Customers Rate Us Excellent!
UNDERSTANDING FRAME GEOMETRY
BMX frame geometry can look daunting, but thanks to our handy guide below you will have it figured out in no time. Remember, we're all BMXers here so if you have any questions just ask.
Keep reading to find your perfect frame, or click below to watch the buyers guide video.
FRAME SIZE CHART
Frame sizing is very much a personal preference: some riders like them longer, others shorter. Here's a rough guide - if you have any questions remember we are here to help!3ft - 3ft 8" - best suited to a 16" BMX bike
3ft 8" - 4ft - best suited an 18" BMX bike
4ft - 5ft - 18" to 20" top tube
5ft - 5ft 4" - 20" to 20.25" top tube
5ft 4" - 5ft 8" - 20.25" to 21" top tube
5ft 8" - 6ft - 21" to 21.25" top tube
6ft plus - 21" top tube or longer
| Rider Height (in) | Rider Height (cm) | Top Tube Length |
|---|---|---|
| 5' | 152 | 20" |
| 5'3" | 160 | 20.5" |
| 5'6" | 167 | 20.75" |
| 5'9" | 175 | 21" |
| 6' | 182 | 21.25" |
| 6'6" | 200 | 21.5" |
FRAME GEOMETRY
Frame geometry can take a bit of understanding - but here at SourceBMX we are here to help! The first thing to understand is that BMX frame sizing is best measured by the length of the top tube - shown here as TT. Keep reading on to understand how the angles change how your frame will feel!
Head tube angle determines the angle of your forks. A steeper HT (i.e 75°and higher) will make the bike turn quicker than a mellower angle (i.e 74.5 and lower°). The more responsive the frame, the more twitchy it will feel, especially at high speed!
Seat tube angles don’t vary too much (around 71°) and affect the centre of gravity. The steeper the angle, the shorter your bike will feel. Some frames have a mellower seat tube angle (example 69˚) which makes for a longer frame without actually being longer and reduces how fast your frame turns.
The chain stay is essentially the length of the rear end of the bike. A shorter CS length will make the bike more responsive and a longer one more stable. As a rough guide a 13.5" long chain stay is about average.
Stand over height is essentially how high your frame is. A frame with a low standover height is more responsive and easier to 'throw around' whilst a high SO height is more stable; particularly useful when going fast.
