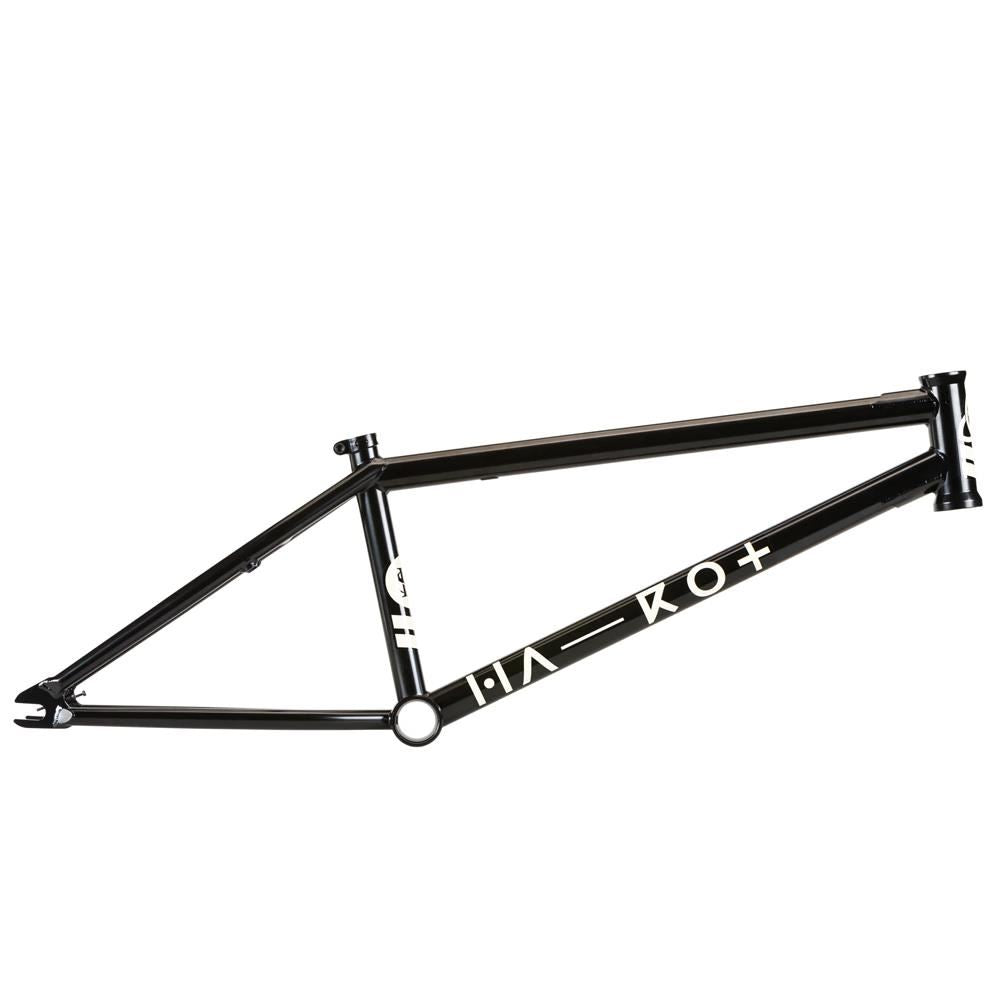

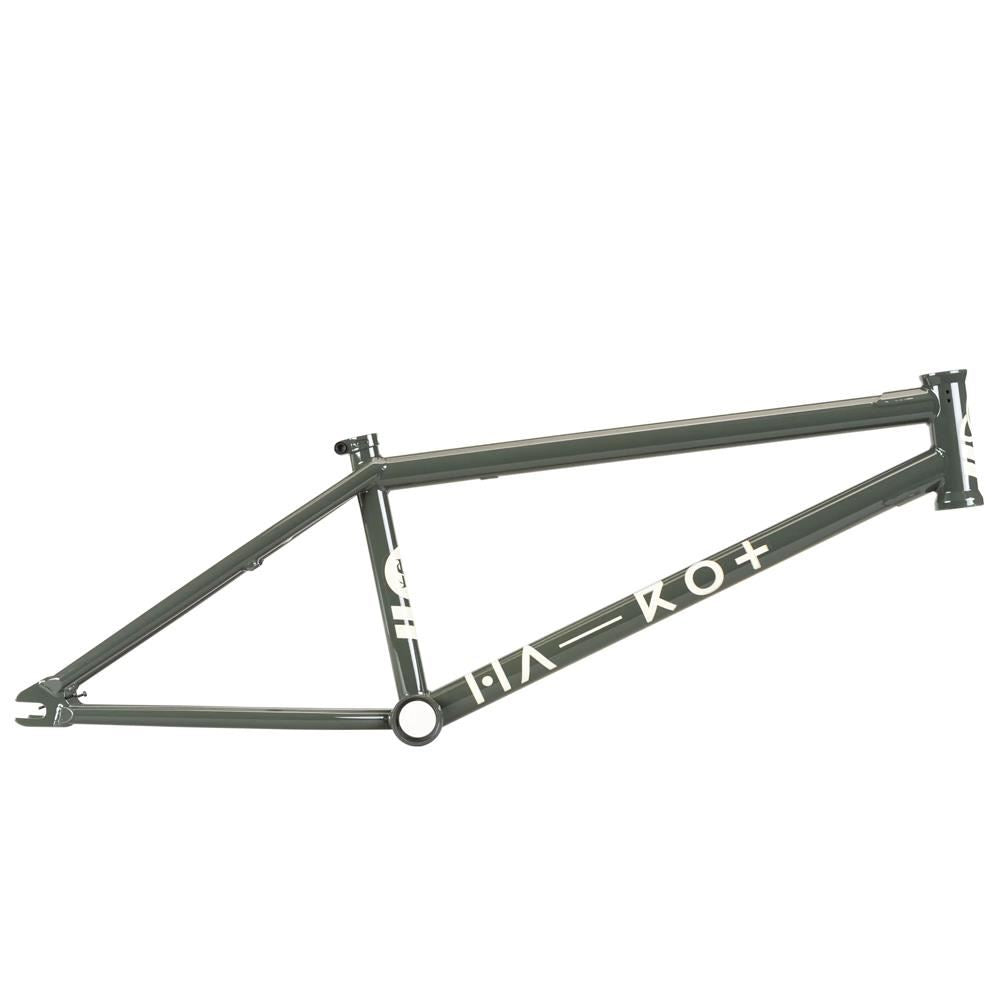

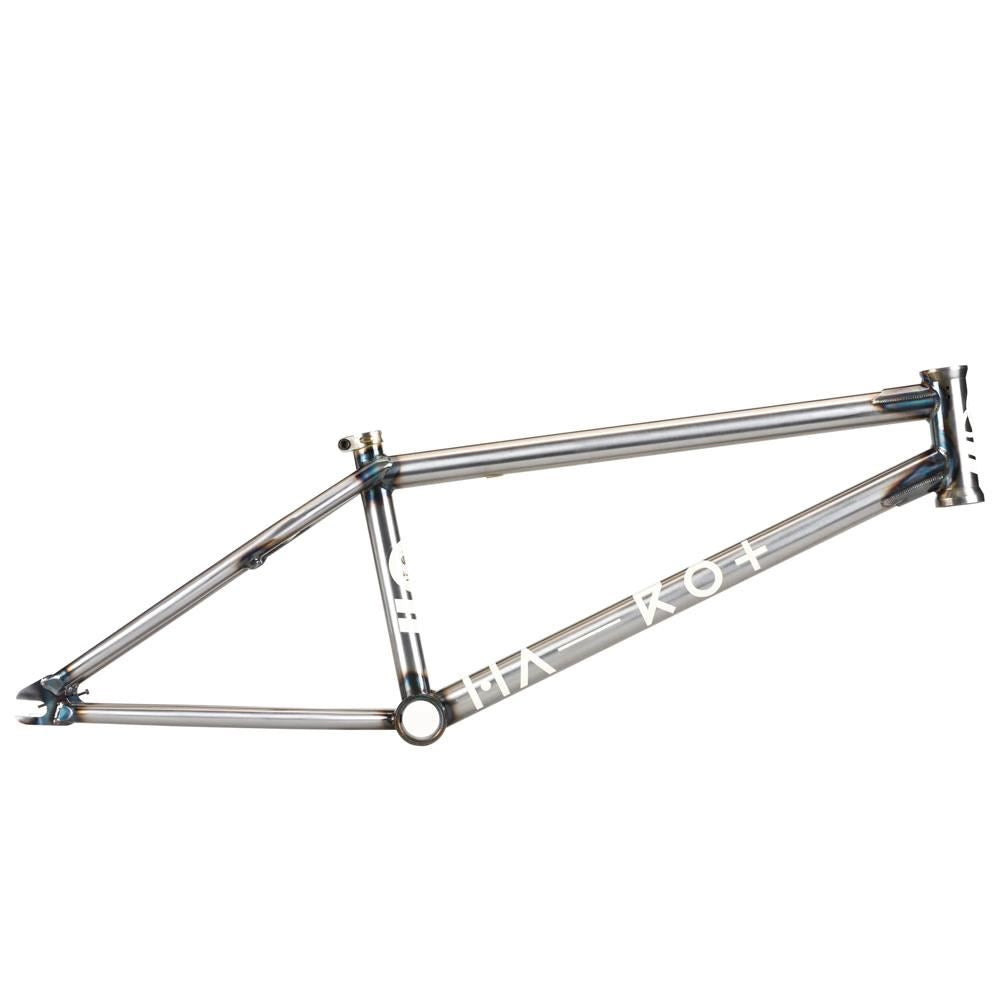

Haro's SD V3 Frame was designed by Dennis Enarson to give you uncompromised support and unrivalled confidence on ramps, trail parks and in the street.
Its modern design and geometry makes it less of a chore to progress your riding without having that twitchy, unstable feeling that can come with other BMX frames. That's why the SD V3 Frame is the perfect choice if you're looking for something that's versatile and capale on any terrain.
Constructed from full 4130 chromoly with double butted top and down tubes giving the SD V3 all the strength and durability you're going to need, with oval shaped and tapered seat and chainstays for added clearance.

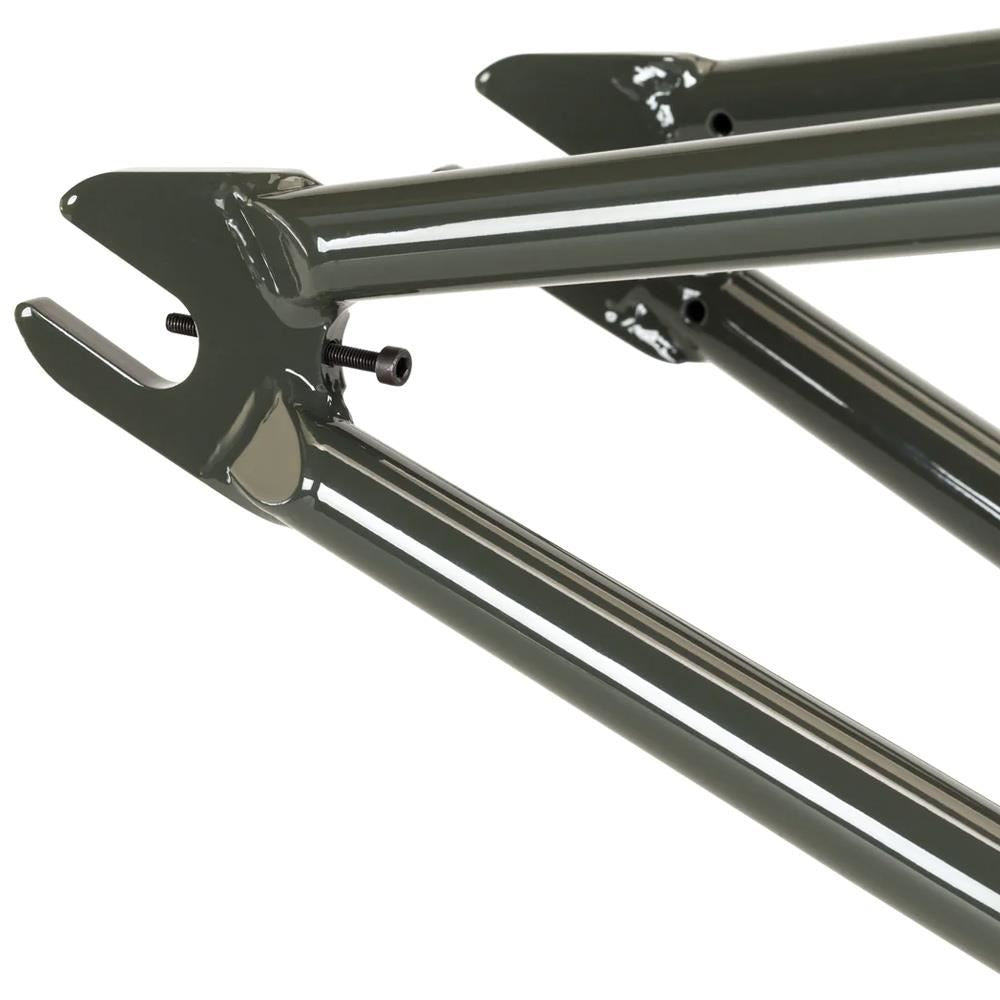

Lastly the Haro SD V3 Frame features a heat-treated integrated head tube, mid BB shell that's machined and pre-heat treated making bearing installation super easy and 6mm thick dropouts with built in chain tensioners.
BMX frame geometry can look daunting, but thanks to our handy guide below you will have it figured out in no time. Remember, we're all BMXers here so if you have any questions just ask.
Keep reading to find your perfect frame, or click below to watch the buyers guide video.
| Rider Height (in) | Rider Height (cm) | Top Tube Length |
|---|---|---|
| 5' | 152 | 20" |
| 5'3" | 160 | 20.5" |
| 5'6" | 167 | 20.75" |
| 5'9" | 175 | 21" |
| 6' | 182 | 21.25" |
| 6'6" | 200 | 21.5" |
Head tube angle determines the angle of your forks. A steeper HT (i.e 75°and higher) will make the bike turn quicker than a mellower angle (i.e 74.5 and lower°). The more responsive the frame, the more twitchy it will feel, especially at high speed!
Seat tube angles don’t vary too much (around 71°) and affect the centre of gravity. The steeper the angle, the shorter your bike will feel. Some frames have a mellower seat tube angle (example 69˚) which makes for a longer frame without actually being longer and reduces how fast your frame turns.
The chain stay is essentially the length of the rear end of the bike. A shorter CS length will make the bike more responsive and a longer one more stable. As a rough guide a 13.5" long chain stay is about average.
Stand over height is essentially how high your frame is. A frame with a low standover height is more responsive and easier to 'throw around' whilst a high SO height is more stable; particularly useful when going fast.Free shipping available to most EU regions on orders over €199.99
Hassle-free returns & exchanges so you can buy in complete confidence
Always get the best price - we'll match any legitimate competitor
Not a fan of the rear end.
